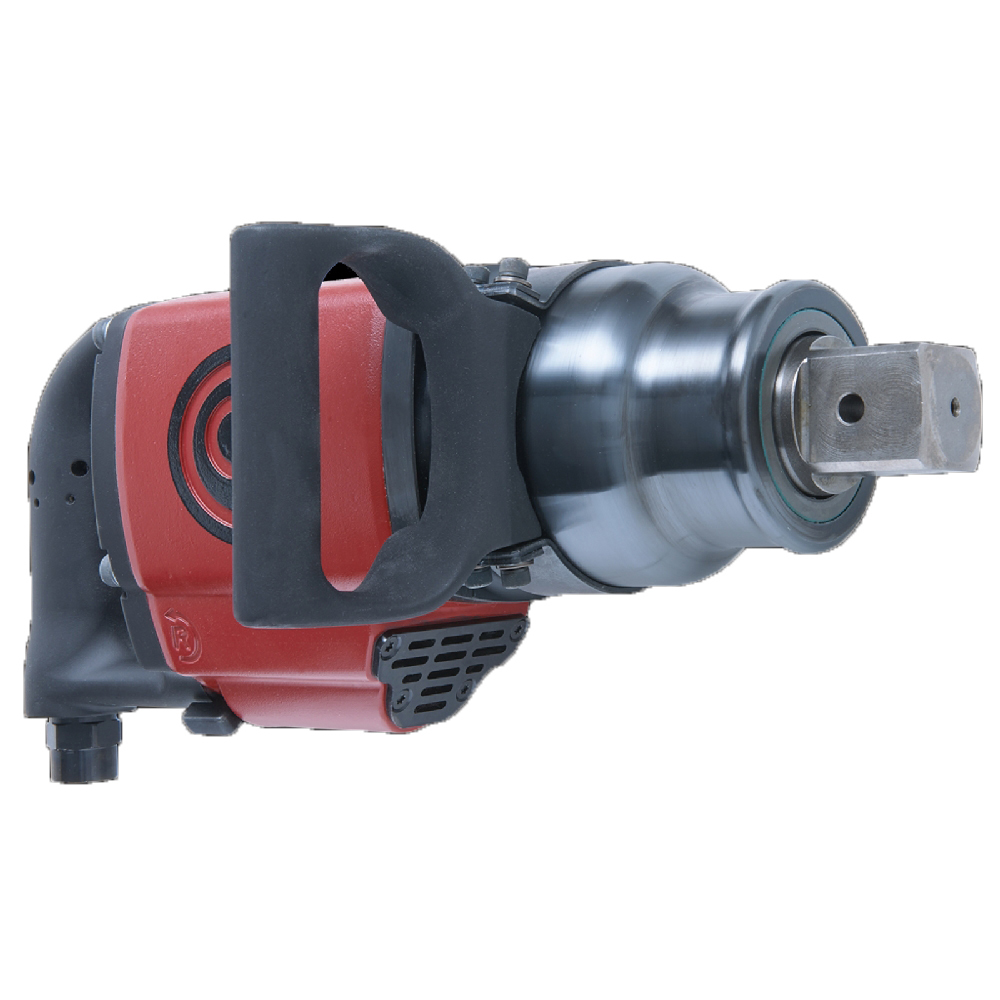

Chicago Pneumatic CP6120-D35H Impact Wrench 4880Nm Super Duty Straight Case

The reference tool for the most demanding applications in energy and metal working segments.

Features & Benefits:

• Premium industrial 1-1/2" impact wrench
• 2-Jaw clutch for superior ergonomics and productivity
• Very robust steel clutch housing and aluminum motor housing
• Extremely comfortable handle and adjustable support handle
• Possibility to change inside/outside trigger, parts included in the box
• Reverse biased 15%, possiblity to change to forward biased by turning around the air motor cylinder

Specifications:

• Model: CP6120-D35H
• Part number: 6151590120
• Actual air consumption: 28.3 l/s / 60 cfm
• Air inlet thread size: 1/2 "
• Blows per minute: 960
• Box dimensions: 505x240x145 mm / 19.9x9.4x5.7 "
• Clutch type: 2-jaw clutch
• European Standards: EN ISO 11148-6:2013
• Free speed: 3500 rpm
• Free speed air consumption: 51.5 l/s
• Handle type: D-Handle Inside Trigger
• Length: 420 mm / 16.5 "
• Maximum Torque (reverse): 4880 Nm / 3600 ft.lbs
• Min. hose size: 19 mm
• Net weight: 15.65 kg / 34.5 lb
• Side to center: 54 mm / 2.13 "
• Socket retainer: Hole
• Sound Power: 108 db(A)
• Sound pressure: 97 db(A)
• Square drive: 1 1/2 "
• Vibration: 21.8 m/s²
• Vibration ISO: ISO-28927-2
• Vibration uncertainty (K): 11.8 m/s²
• Working Torque Range (fwd): 815 - 2,710 Nm / 600 - 2,000 ft.lbs
