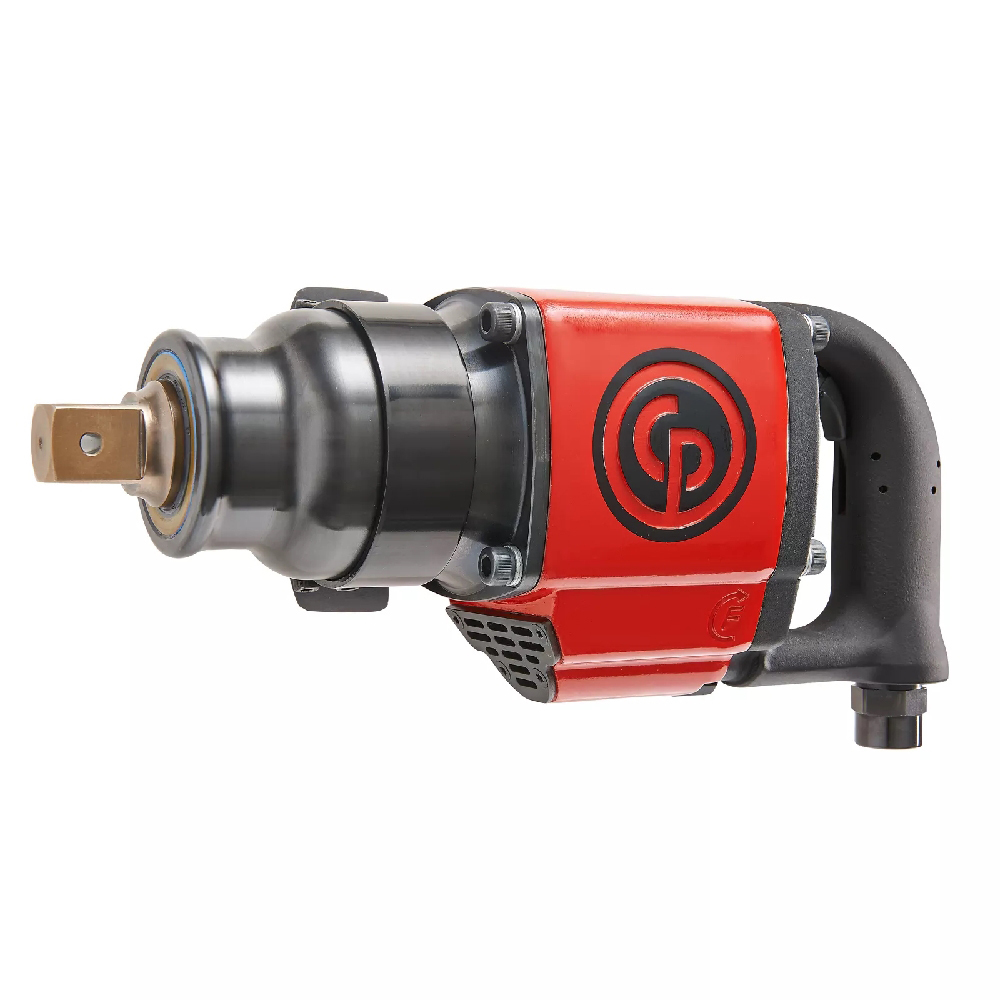

Chicago Pneumatic CP0611-D28H 1" Impact Wrench Straight Case Super Duty

Ideal for Heavy Industrial Maintenance and Production applications.

Features:

• Super Industrial 1" impact wrench
• Reliable 2-jaw clutch with the highest Blows per Minutes
• Full Teasing (inside) trigger with durable reverse
• Durable aluminum body & indestructible steel clutch housing
• Compact 3-part construction & easy maintenance
• Hole type socket retainer with O-ring
• 360° adjustable D-type side handle

Specifications:

• Model: CP0611-D28H
• Part Number: 6151590160
• Actual Air Consumption: 32 l/s / 68 cfm
• Air Inlet Thread Size: 1/2 "
• Blows Per Minute: 1020
• Bolt Size: M36 mm
• Box Dimensions: 505x240x145 mm
• Clutch Type: 2-jaw clutch
• European Standards: EN ISO 11148-6:2013
• Free Speed: 3500 rpm
• Free Speed Air Consumption: 55 l/s
• Handle Type: D-Handle
• Length: 360 mm / 14.17 "
• Maximum Torque (Reverse): 3790 Nm / 2800 ft.lbs
• Min. Hose Size: 1 "
• Net Weight: 10.4 kg / 22.9 lb
• Power/Weight Ratio: 364.4 Nm/kg / 122.3 ft.lb/lb
• Side to Center: 46 mm / 1.81 "
• Socket Retainer: Hole
• Sound Power: 110 db(A)
• Sound Pressure: 99 db(A)
• Square Drive: 1 "
• Vibration: 18 m/s²
• Vibration ISO: ISO-28927-2
• Vibration Uncertainty (K): 4.1 m/s²
• Working Torque Range (Fwd): 1220 - 2440 Nm / 900 - 1,800 ft.lbs
