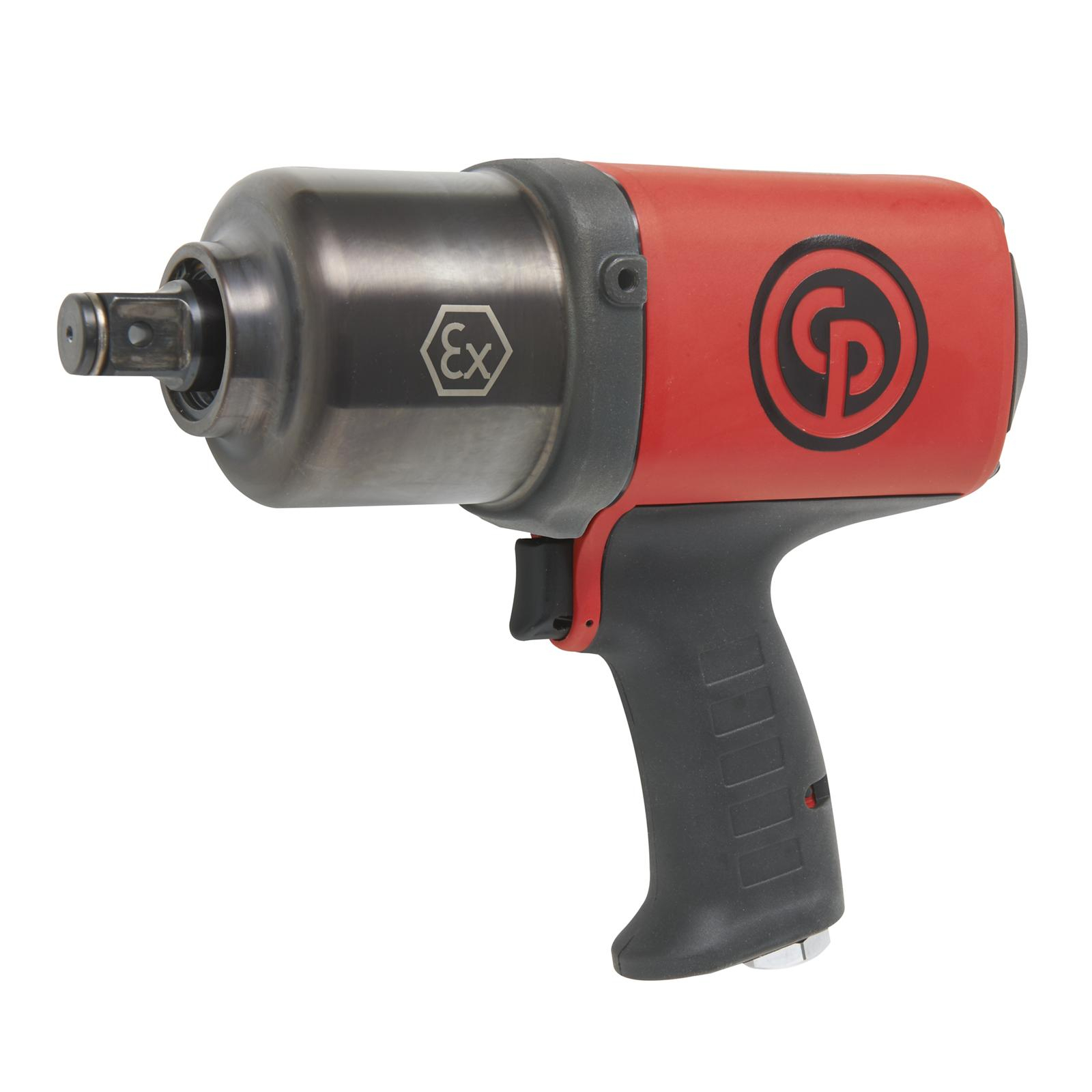

Chicago Pneumatic CP6768EX-P18D 3/4" Impact Wrench 1800Nm Super Duty Pistol Grip
Model : #CP6768EX-P18D
Share This Item:
Chicago Pneumatic CP6768EX-P18D 3/4" Impact Wrench 1800Nm Super Duty Pistol Grip
Superior durability - designed for intensive use.
Features & Benefits:
- Twin hammer in oil bath and steel clutch housing for long life
- Extremely durable steel motor
- Dust-proof (IP6) and ATEX certified
- High torque - up to 1290 ft.lb (1750 Nm)
- Comfortable and light weight
Specifications:
- Model: CP6768EX-P18D
- Part number: 6151590580
- Actual air consumption: 18 l/s / 38 cfm
- Air inlet thread size: 3/8 "
- Blows per minute: 1050
- Box dimensions: 100 x 260 x 280 mm / 4.0 x 10.2 x 11.0 "
- Clutch type: Twin hammer / Oil Bath
- European Standards: EN ISO 11148-6:2013
- Free speed: 5100 rpm
- Free speed air consumption: 26 l/s / 55 cfm
- Handle type: Pistol
- Length: 250 mm / 10 "
- Maximum Torque (reverse): 1750 Nm / 1290 ft.lbs
- Min. hose size: 13 mm / 1/2 "
- Net weight: 4.4 kg / 9.8 lb
- Power/weight ratio: 398 Nm/kg / 132 ft.lb/lb
- Side to center: 45 mm / 1.77 "
- Socket retainer: Dual (hole+friction)
- Sound Power: 105 db(A)
- Sound pressure: 94 db(A)
- Square drive: 3/4 "
- Vibration: 9.4 m/s²
- Vibration ISO: ISO-28927-2
- Vibration uncertainty (K): 2.4 m/s²
- Working Torque Range (fwd): 400 - 1400 Nm / 290 - 1030 ft.lbs
(CP6768EX-P18D)
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002500000m3 |
