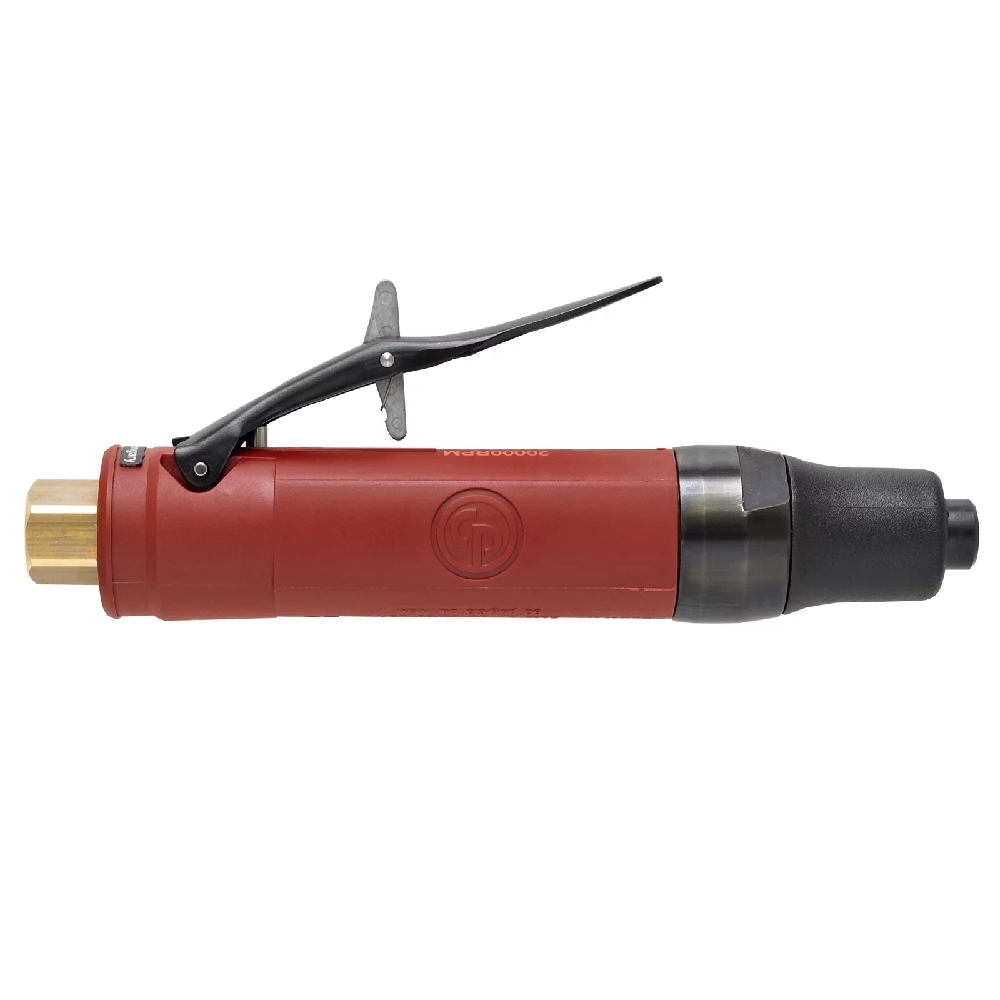

Chicago Pneumatic CP3019-25 1/4" Super Duty Die Grinder 25000 Rpm Rear Exhaust


Features & Benefits:

  • Compact body
  • Insulating composite over-housing
  • Streamlined safety lever
  • Rear exhaust
  • 1/4" (6.35mm) collet holder
  • 0.5 hp (375 W) governed motor
  • 25,000 rpm free speed
  • Optimal productivity
  • Highest durability in demanding applications up to 2000 hours maintenance intervals


Specifications:

  • Model: CP3019-25
  • Part Number: 6151600110
  • Actual Air Consumption: 540 l/mn / 19.08 cfm
  • Air Inlet Thread Size: 1/4"
  • Average Air Consumption: 270 l/mn / 9.54 cfm
  • Box Dimensions: 353x173x63mm
  • Collet Size: 6.35mm / 1/4"
  • European Directives: 2006/42/EC (17/05/2006)
  • European Standards: EN ISO 11148-9:2012
  • Free Speed: 25000 rpm
  • Free Speed Air Consumption: 4 l/s / 8.5 cfm
  • Length: 169mm / 6.6"
  • Min. Hose Size: 8mm / 5/16"
  • Net Weight: 0.38 kg / 0.83 lb
  • Power: 375 W / 1/2 hp
  • Rear Exhaust: Yes
  • Sound Power: 88.7 db(A)
  • Sound Pressure: 77.7 db(A)
  • Vibration: 2.6 m/s²
  • Vibration ISO: ISO-28927-12
  • Vibration Uncertainty (K): 1 1/2 m/s²

(CP3019-25)

Brand Chicago Pneumatic
Shipping Cubic 0.001690000m3
