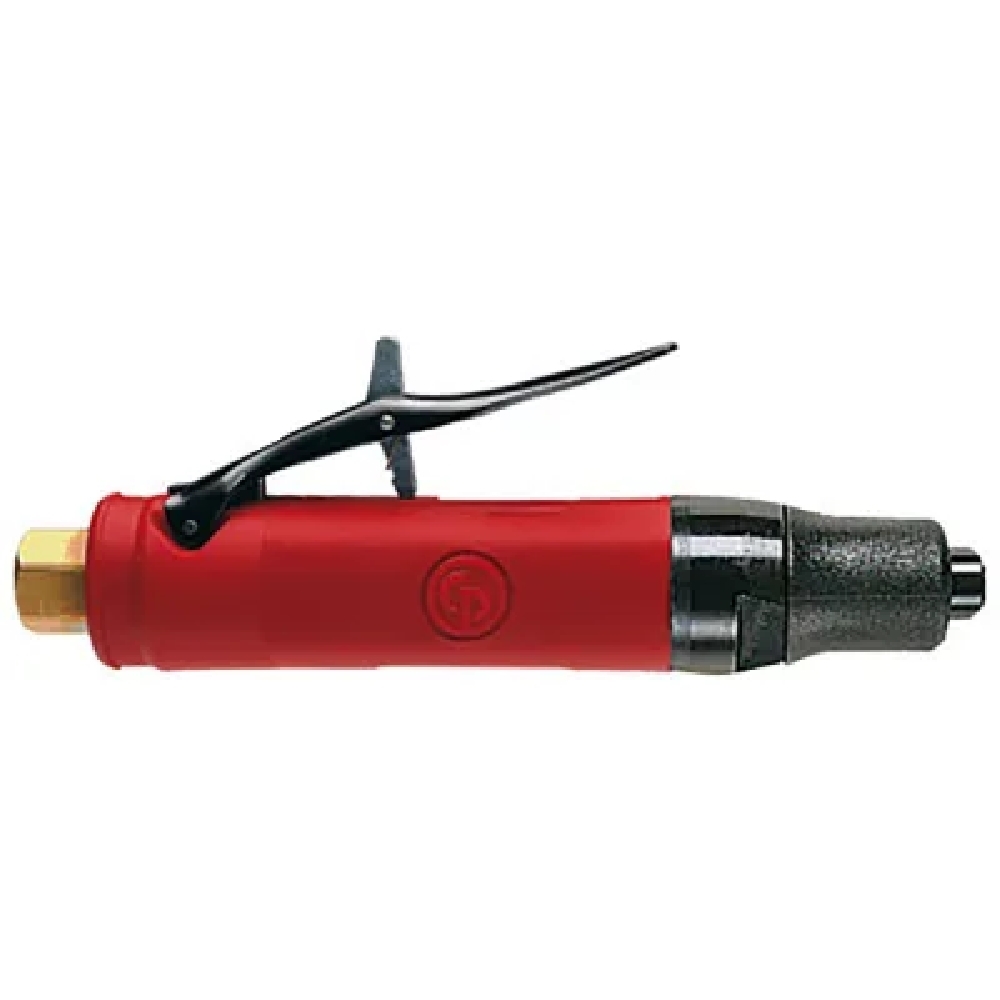

Chicago Pneumatic CP3019-20 1/4" Super Duty Die Grinder 20000 Rpm Rear Exhaust
Model : #CP3019-20
Share This Item:
Chicago Pneumatic CP3019-20 1/4" Super Duty Die Grinder 20000 Rpm Rear Exhaust
Features & Benefits:
- Highly durable bevel gearing
- Compact body
- Insulating composite over housing
- Streamlined safety lever
- Rear exhaust
- 3" (73 mm) wheel capacity
- 0.5 hp (375 W) governed motor
- 20,000 rpm free speed
- Optimal productivity
- Highest durability in demanding applications, up to 2000 hour service interval
Specifications:
- Air Inlet Thread Size: 1/4"
- Average Air Consumption: 270 l/mn / 9.54 cfm
- Box Dimensions: 353x173x63mm
- Collet Size: 6.35mm / 1/4"
- European Directives: 2006/42/EC (17/05/2006)
- European Standards: EN ISO 11148-9:2012
- Free Speed: 20000 rpm
- Free Speed Air Consumption: 3 l/s / 6.4 cfm
- Length: 169mm / 6.7"
- Min. Hose Size: 8mm / 5/16"
- Net Weight: 0.38 kg / 0.83 lb
- Power: 375 W / 1/2 hp
- Rear Exhaust: Yes
- Sound Power: 85.7 db(A)
- Sound Pressure: 74.7 db(A)
- Vibration: 4.1 m/s²
- Vibration ISO: ISO-28927-12
- Vibration Uncertainty (K): 1 1/2 m/s²
(CP3019-20)
Brand | Chicago Pneumatic |
Shipping Cubic | 0.001690000m3 |
