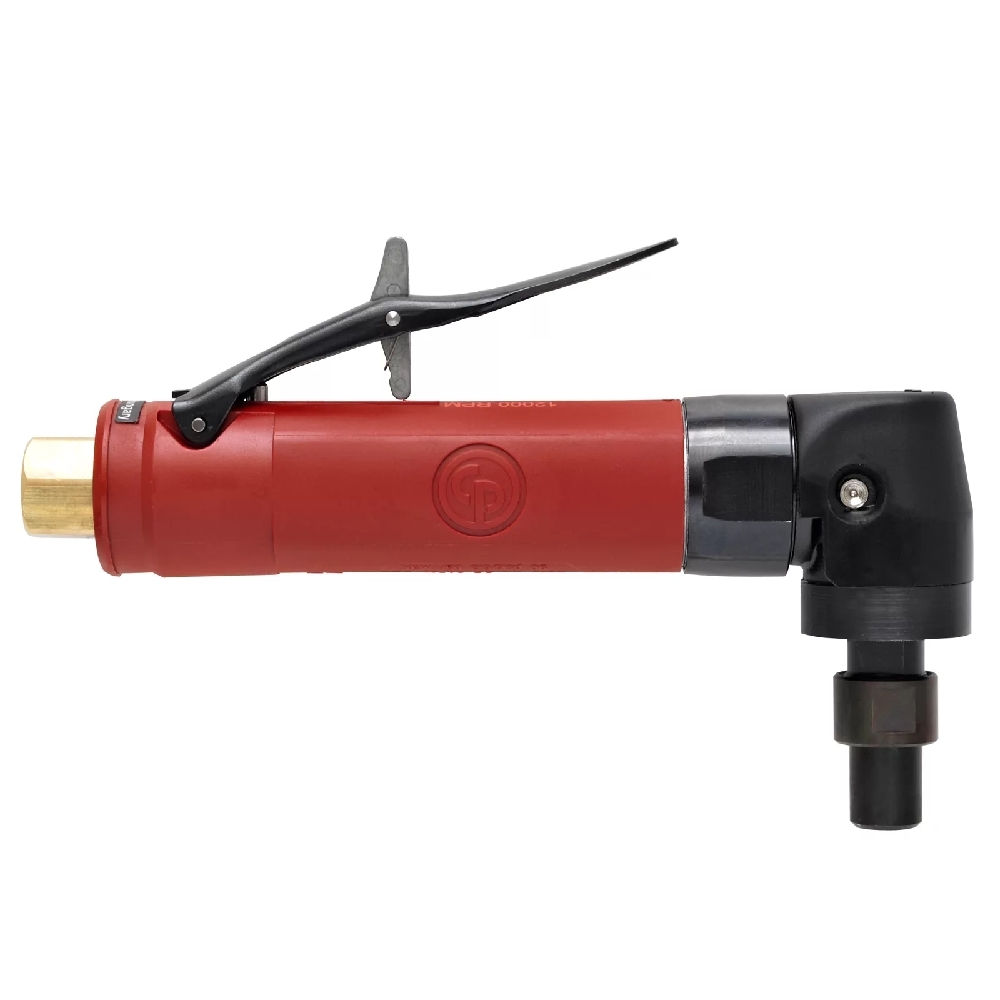

Chicago Pneumatic CP3019-12AC 1/4" Super Duty Angle Head Die Grinder 12000 Rpm
Model : #CP3019-12AC
Share This Item:
Chicago Pneumatic CP3019-12AC 1/4" Super Duty Angle Head Die Grinder 12000 Rpm
Features & Benefits:
- Compact body
- Insulating composite over housing
- Streamlined safety lever
- Highly durable bevel gear
- Rear exhaust
- 1/4" (6.35 mm) collet holder
- 0.5 hp (375 W) governed motor
- 12,000 rpm free speed
- Industrial angle die grinder
- Optimal productivity
- Highest durability in demanding applications up to 2,000 hours between maintenance intervals
Specifications:
- Model: CP3019-12AC
- Part Number: 6151604070
- Actual Air Consumption: 480 l/mn / 16.96 cfm
- Air Inlet Thread Size: 1/4"
- Average Air Consumption: 240 l/mn / 8.48 cfm
- Box Dimensions: 380x218x96mm
- Collet Size: 6.35mm / 1/4"
- European Directives: 2006/42/EC (17/05/2006)
- European Standards: EN ISO 11148-9:2012
- Free Speed: 12000 rpm
- Free Speed Air Consumption: 3.2 l/s / 6.8 cfm
- Length: 216mm / 8.5"
- Min. Hose Size: 8mm / 5/16"
- Net Weight: 0.51 kg / 1.11 lb
- Power: 375 W / 1/2 hp
- Rear Exhaust: Yes
- Sound Power: 89 db(A)
- Sound Pressure: 78 db(A)
- Vibration: 3.7 m/s²
- Vibration ISO: ISO-28927-12
- Vibration Uncertainty (K): 1.9 m/s²
(CP3019-12AC)
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002160000m3 |
