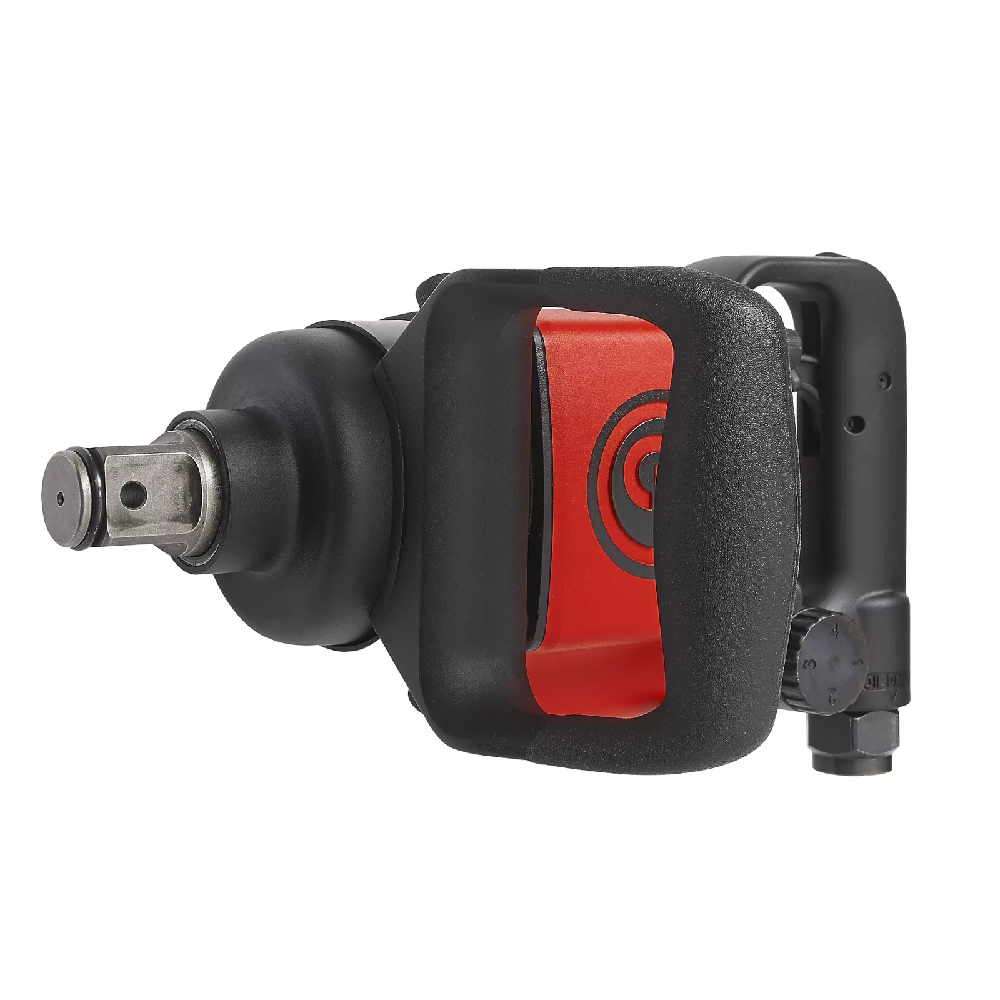

Chicago Pneumatic CP6773-D18D 1" Impact Wrench Pistol Grip 1760Nm Friction Ring

Compact and versatile for industrial maintenance applications.

Features & Benefits:

• Only 6.7 kg
• Robust with steel clutch housing and aluminum motor housing
• Powerful, untightening torque 1300 ft.lb (1760 Nm)
• Suited for many industrial MRO
• Good ergonomics giving less operator's fatigue
• Hole and ring retaining system

Specifications:

• Model: CP6773-D18D
• Part number: 6151590650
• Actual air consumption: 19.3 l/s / 41 cfm
• Air inlet thread size: 1/2 "
• Blows per minute: 730
• Box dimensions: 325*190*130 mm / 12,8*7,5*5,1 "
• Clutch type: Twin hammer
• European Standards: EN ISO 11148-6:2013
• Free speed: 6600 rpm
• Free speed air consumption: 26.5 l/s
• Handle type: D-Handle Inside Trigger
• Length: 290 mm / 11.4 "
• Maximum Torque (reverse): 1760 Nm / 1300 ft.lbs
• Min. hose size: 13 mm / 3/8 "
• Net weight: 6.7 kg / 14.7 lb
• Over carton: 350*210*290 mm / 13,8*8,3*11,4 "
• Side to center: 41 mm / 1.6 "
• Socket retainer: Dual (hole+friction)
• Sound Power: 109 db(A)
• Sound pressure: 98 db(A)
• Square drive: 1 "
• Vibration: 11.4 m/s²
• Vibration ISO: ISO-28927-2
• Vibration uncertainty (K): 2.9 m/s²
• Working Torque Range (fwd): 340 - 1450 Nm / 250 - 1070 ft.lbs
