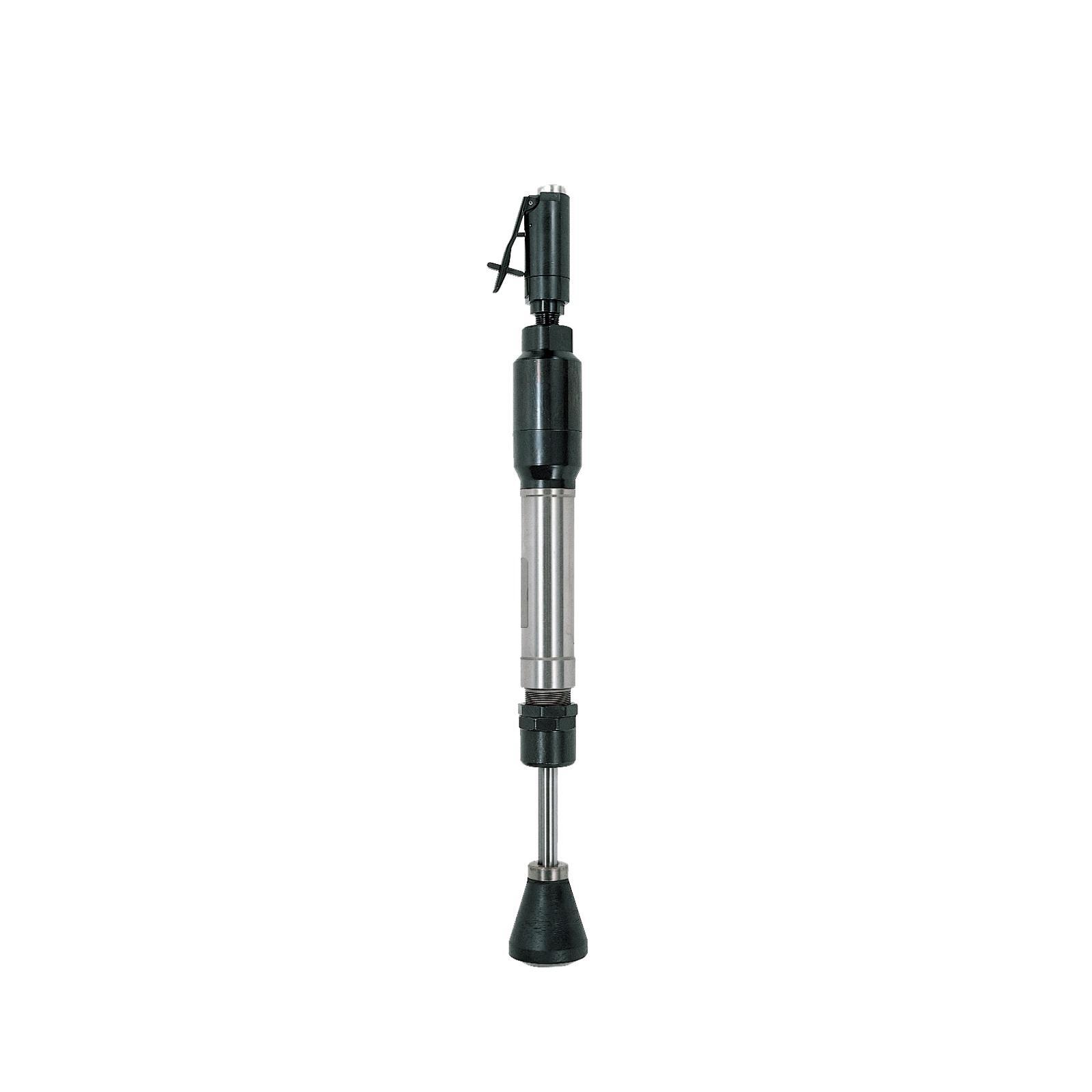

Chicago Pneumatic CP0200B25-2F 506mm Sand Rammer 780 Bpm 25.4mm Bore 83mm Stroke

To be used casting sand in cylinders, large molds.

Features & Benefits:

• High effiency due to the high bpm
• Extra durability due to heat treated parts
• Comfortable operation and high production
• Ideal for foundry applications

Specifications:

• Model: CP0200B25-2F
• Part Number: 6151618060
• Actual Air Consumption: 700 l/mn / 24.7 cfm
• Air Inlet Thread Size: 3/8 "
• Blows Per Minute: 780
• Bore: 25.4 mm / 1 "
• Butt Diameter: 67 mm / 2.64 "
• European Directives: 2006/42/EC (17/05/2006)
• European Sound Standard: ISO 15744
• European Standards: EN ISO 11148-4:2012
• Length: 506 mm / 19.9 "
• Min. Hose Size: 13 mm / 1/2 "
• Net Weight: 5 1/2kg / 12.1lb
• Sound Power: 106 db(A)
• Sound Pressure: 95 db(A)
• Sound Uncertainty: 3 db(A)
• Stroke: 83 mm / 3.26 "
• Vibration: 24.3 m/s²
• Vibration ISO: ISO-28927-6
• Vibration Uncertainty (K): 7.6 m/s²
