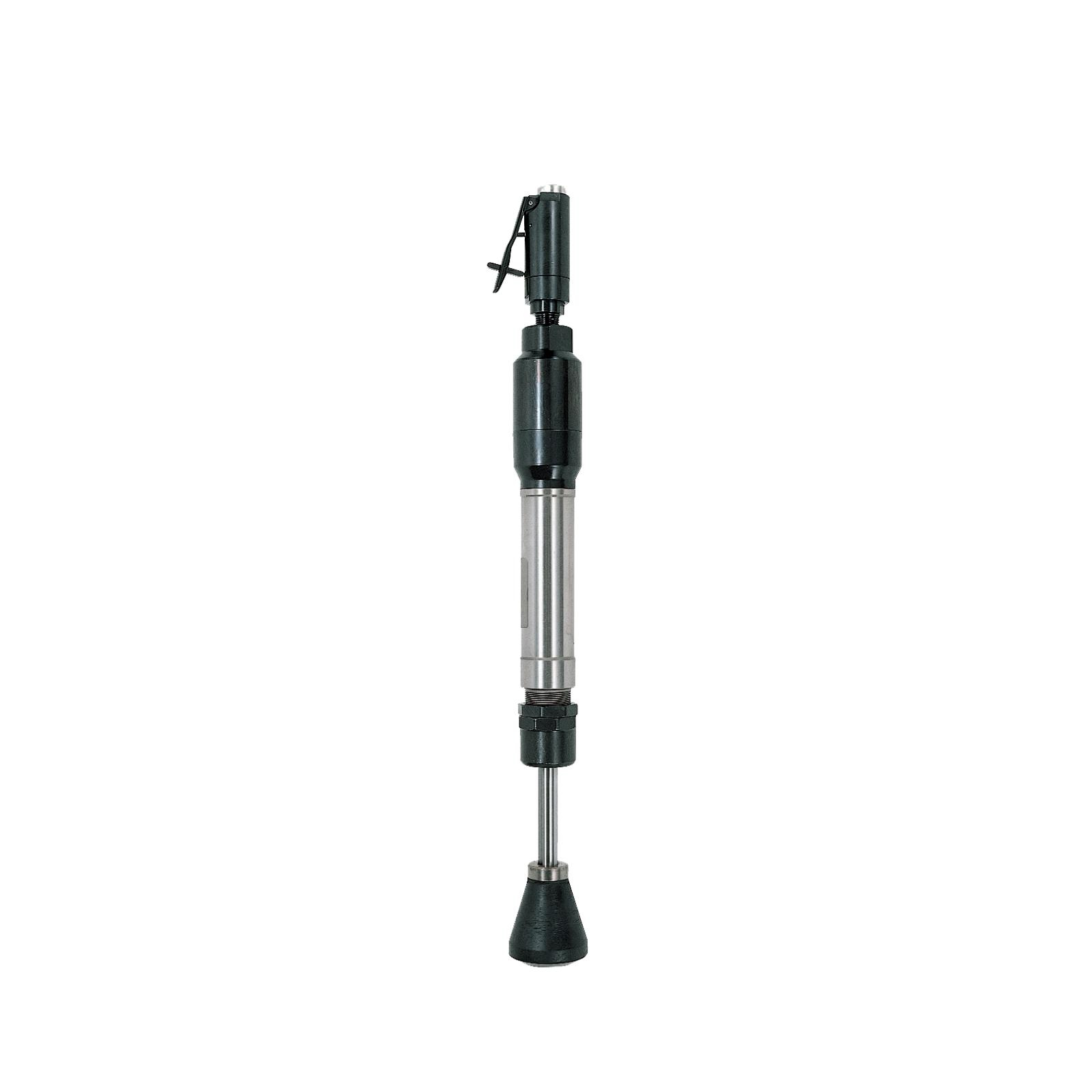

Chicago Pneumatic CP0200B18-2F 280mm Sand Rammer 1800 Bpm 18mm Bore 50mm Stroke

Used for casting sand in cylinders, large molds.

Features & Benefits:

• High effiency due to the high bpm
• Extra durability due to heat treated parts
• Ideal for foundry applications
• Comfortable operation and high production

Specifications:

• Model: CP0200B18-2F
• Part Number: 6151618020
• Actual Air Consumption: 400 l/mn / 14.1 cfm
• Air Inlet Thread Size: 1/4 "
• Average Air Consumption: 14.1 cfm
• Blows Per Minute: 1800
• Bore: 18 mm / 0.71 "
• Butt Diameter: 41 mm / 1.61 "
• European Directives: 2006/42/EC (17/05/2006)
• European Sound Standard: ISO 15744
• European Standards: EN ISO 11148-4:2012
• Length: 280 mm / 11.03125 "
• Min. Hose Size: 10 mm / 3/8 "
• Net Weight: 1 1/2kg / 3.3lb
• Sound Power: 106 db(A)
• Sound Pressure: 95 db(A)
• Sound Uncertainty: 3 db(A)
• Stroke: 50 mm
• Vibration: 19.4 m/s²
• Vibration: ISO-28927-6
• Vibration Uncertainty (K): 5.9 m/s²
