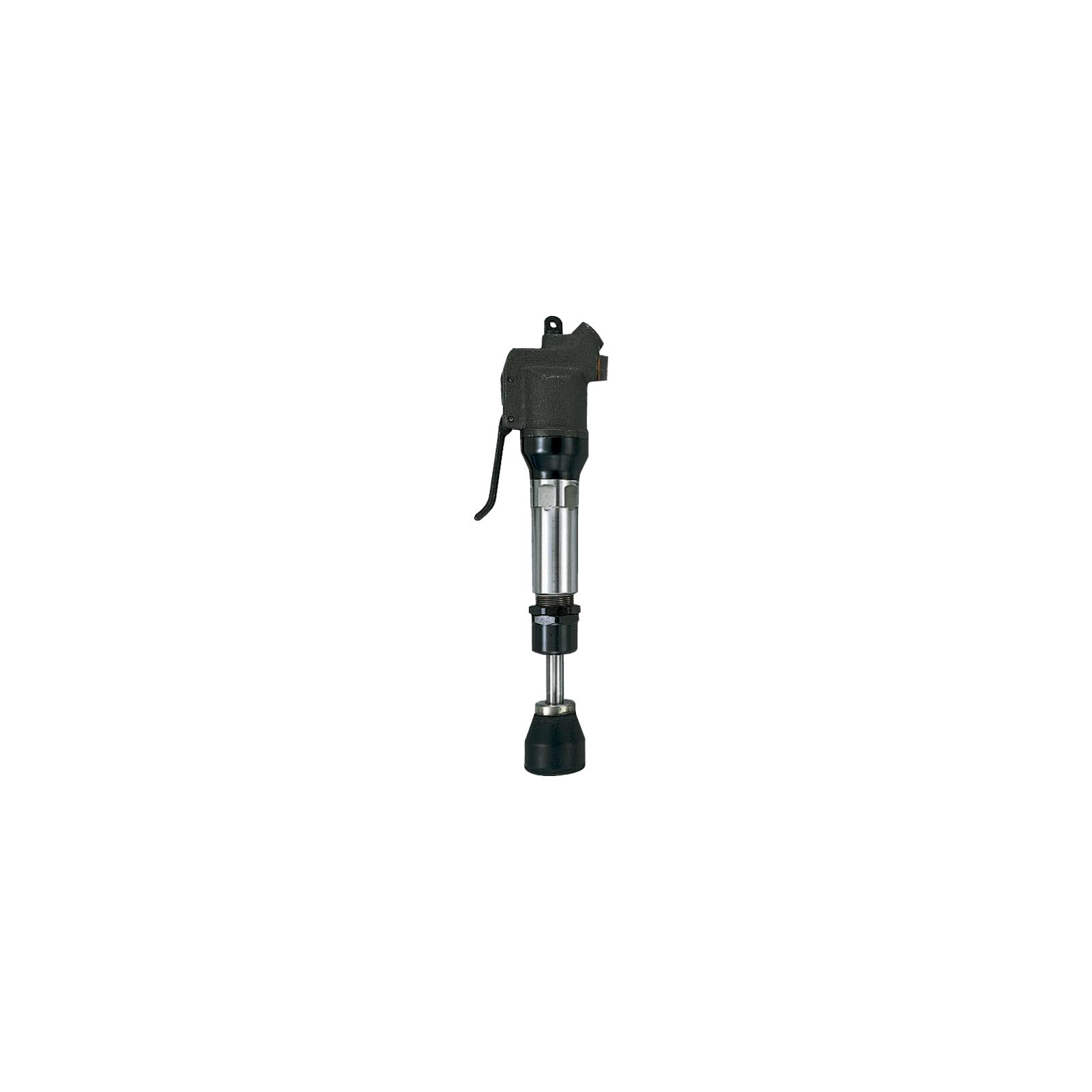

Chicago Pneumatic CP0200B22 350mm Sand Rammer 1020 Bpm 22mm Bore 64mm Stroke

To be used for casting sand in cylinders, large molds.

Features & Benefits:

• High effiency due to the high bpm
• Extra durability due to heat treated parts
• Ideal for foundry applications
• Comfortable operation and high production

Specifications:

• Model: CP0200B22
• Part Number: 6151618030
• Actual Air Consumption: 502 l/mn / 17.7 cfm
• Air Inlet Thread Size: 3/8 "
• Blows Per Minute: 1020
• Bore: 22 mm / 0.859375 "
• Butt Diameter: 51 mm / 2.01 "
• European Directives: 2006/42/EC (17/05/2006)
• European Sound Standard: ISO 15744
• European Standards: EN ISO 11148-4:2012
• Length: 350 mm / 13.8 "
• Min. Hose Size: 10 mm / 3/8 "
• Net Weight: 3kg / 6.6lb
• Sound Power: 106 db(A)
• Sound Pressure: 95 db(A)
• Sound Uncertainty: 3 db(A)
• Stroke: 64 mm / 2.515625 "
• Vibration: 19.4 m/s²
• Vibration ISO: ISO-28927-6
• Vibration Uncertainty (K): 6.1 m/s²
