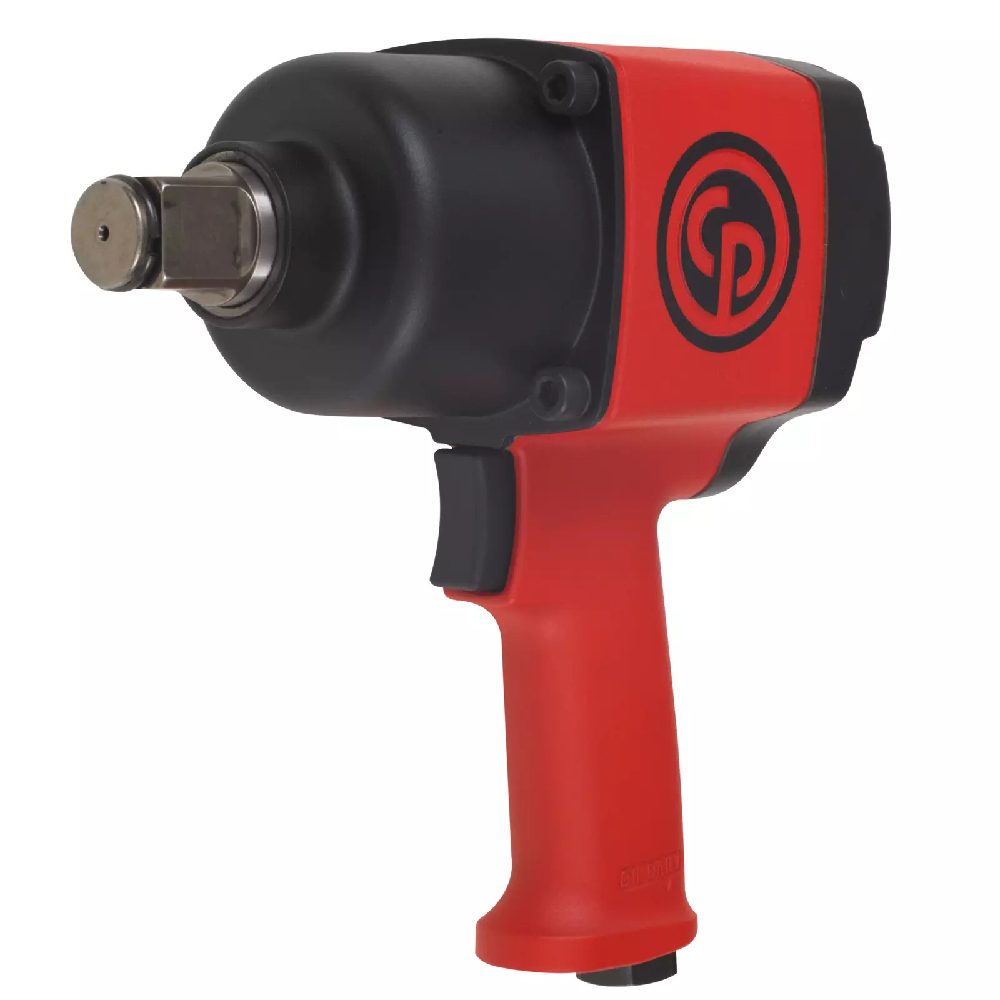

Chicago Pneumatic CP6773 1" Impact Wrench Pistol Grip 1630Nm Friction Ring

Compact and versatile for industrial maintenance applications.

Features & Benefits:

• 1" impact wrench with Dual retainer
• Short and narrow side-to-center for easy access
• Robust Steel Clutch housing
• Powerful Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)
• Combined power regulator with forward/reverse
• Built to withstand the harshest environments and the most demanding application
• Powerful and very hard hitting tool

Specifications:

• Model: CP6773
• Part number: 6151590410
• Actual air consumption: 14.2 l/s / 30 cfm
• Air inlet thread size: 3/8 "
• Blows per minute: 900
• Bolt size: M27 mm
• Box dimensions: 224*90*232 mm
• Clutch type: Twin Hammer
• European Standards: EN ISO 11148-6:2013
• Free speed: 6300 rpm
• Handle type: Pistol
• Length: 227.5 mm / 8.8 "
• Maximum Torque (reverse): 1630 Nm / 1200 ft.lbs
• Min. hose size: 13 mm / 1/2 "
• Net weight: 5.6 kg / 12.3 lb
• Power/weight ratio: 291.1 Nm/kg / 97.6 ft.lb/lb
• Side to center: 41 mm / 1.6 "
• Socket retainer: Ring
• Sound Power: 107 db(A)
• Sound pressure: 96 db(A)
• Square drive: 1 "
• Vibration: 9.4 m/s²
• Vibration ISO: ISO-28927-2
• Vibration uncertainty (K): 1.3 m/s²
• Working Torque Range (fwd): 350 - 1290 Nm / 260 - 950 ft.lbs
