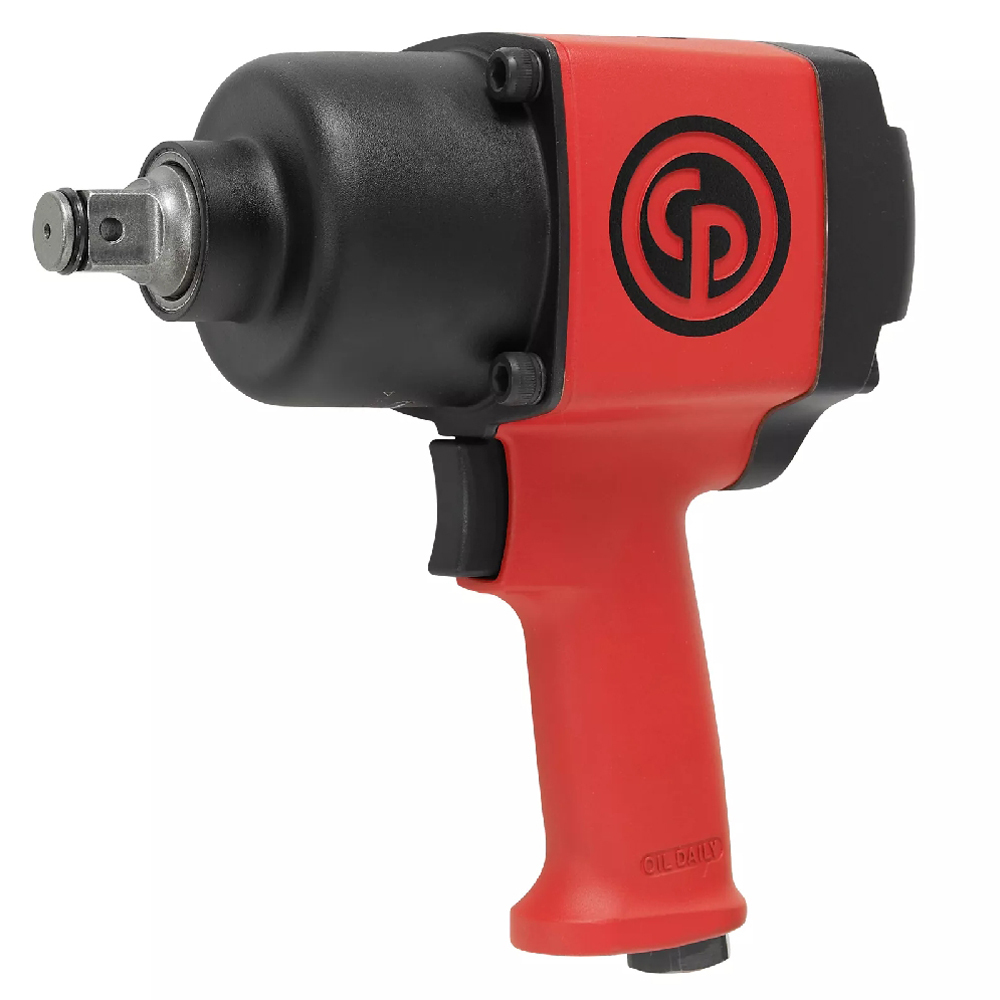

Chicago Pneumatic CP6763 3/4" Impact Wrench Pistol Grip 1630Nm Friction Ring

Compact and versatile for industrial maintenance applications.

Features & Benefits:

• 3/4" impact wrench with dual retainer
• Very powerful twin hammer clutch
• Robust Steel Clutch housing
• Extremely durable steel motor
• Robust steel clutch housing
• Powerful Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)
• Combined power regulator with forward/reverse
• Very hard hitting twin hammer clutch
• Robust for the roughest environments and the toughest applications

Specifications:

• Model: CP6763
• Part number: 6151590400
• Actual air consumption: 14.2 l/s / 30 cfm
• Air inlet thread size: 3/8 "
• Blows per minute: 900
• Bolt size: M27 mm
• Box dimensions: 22490232 mm
• Clutch type: Twin Hammer
• European Standards: EN ISO 11148-6:2013
• Free speed: 6300 rpm
• Handle type: Pistol
• Length: 222 mm / 8.74 "
• Maximum Torque (reverse): 1630 Nm / 1200 ft.lbs
• Min. hose size: 13 mm / 1/2 "
• Net weight: 5 1/2 kg / 12.1 lb
• Power/weight ratio: 296.4 Nm/kg / 99.2 ft.lb/lb
• Side to center: 41 mm / 1.6 "
• Socket retainer: Ring
• Sound Power: 107 db(A)
• Sound pressure: 96 db(A)
• Square drive: 3/4 "
• Vibration: 9.4 m/s²
• Vibration ISO: ISO-28927-2
• Vibration uncertainty (K): 1.3 m/s²
• Working Torque Range (fwd): 350 - 1290 Nm / 260 - 950 ft.lbs
