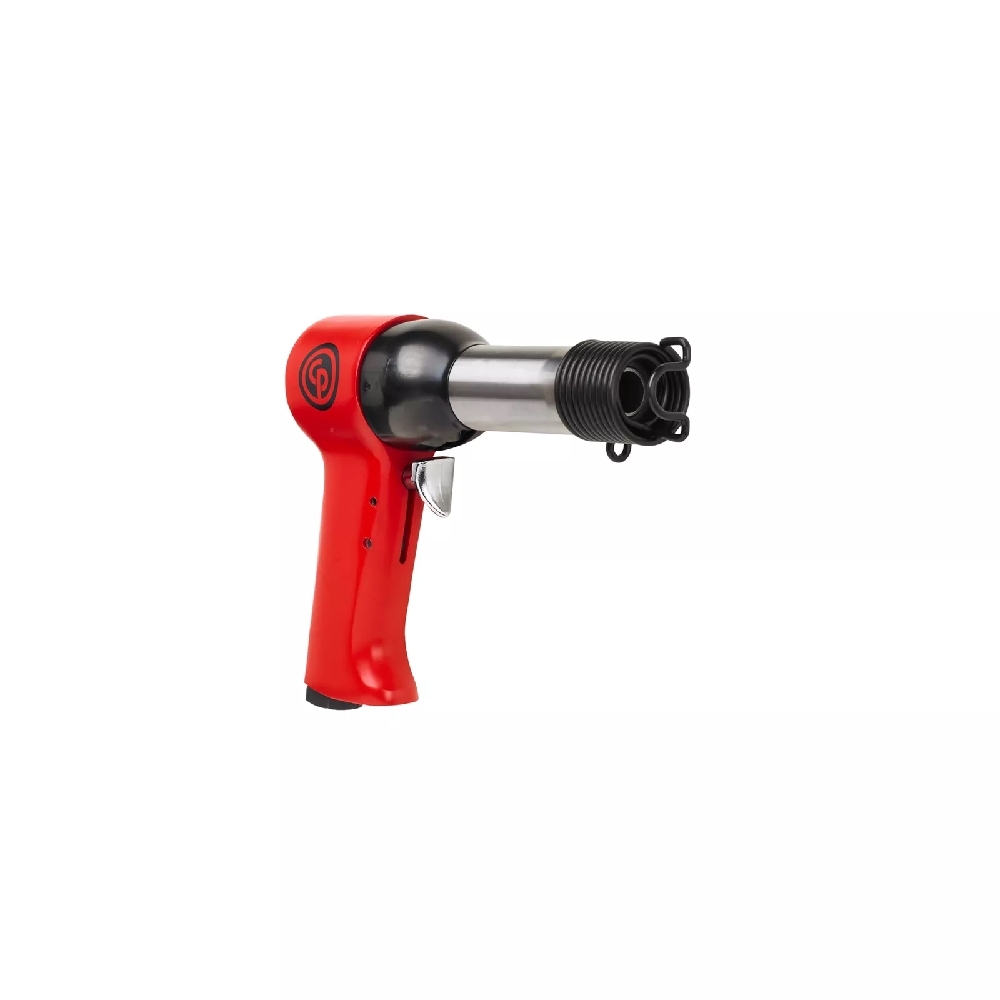

Chicago Pneumatic CP4283 Heavy Duty Riveting Hammer

Features & Benefits:

• Designed for rivets up to 3/16"
• Delivered with chisel retainer included in the box
• To be used with chisel kit 6153609400
• Lightweight and comfortable to hold
• Excellent control with teasing trigger

Specifications:

• Model: CP4283
• Part number: 6151740610
• Air inlet thread size: 1/4 "
• Air inlet thread type: NPT
• Average air consumption: 1.89 l/s / 4 cfm
• Blows per minute: 2160
• Bore: 12.7 mm / 1/2 "
• Chisel rivet set shank: 10.2 mm / 0.401 "
• Cold rivet capacity (duralmin): 4.76 mm / 3/16 "
• Cold rivet capacity (steel): 3.96 mm / 0.15625 "
• European Directives: 2006/42/EC (17/05/2006)
• European Sound standard: EN ISO 15744
• European Standards: EN ISO 11148-4 : 2012
• Height: 142.8 mm / 5.625 "
• Length: 186 mm / 7.25 "
• Min. hose size: 9.5 mm / 3/8 "
• Net weight: 1.36 kg / 3 lb
• Power (Joules): 4.3 joule
• Sound Power: 107 db(A)
• Sound pressure: 96 db(A)
• Sound uncertainty: 3 db(A)
• Stroke: 73 mm / 2.87 "
• Vibration: 11.7 m/s²
• Vibration ISO: EN ISO 28927-10
• Vibration uncertainty (K): 3.1 m/s²
• Width: 50.8 mm / 2 "
