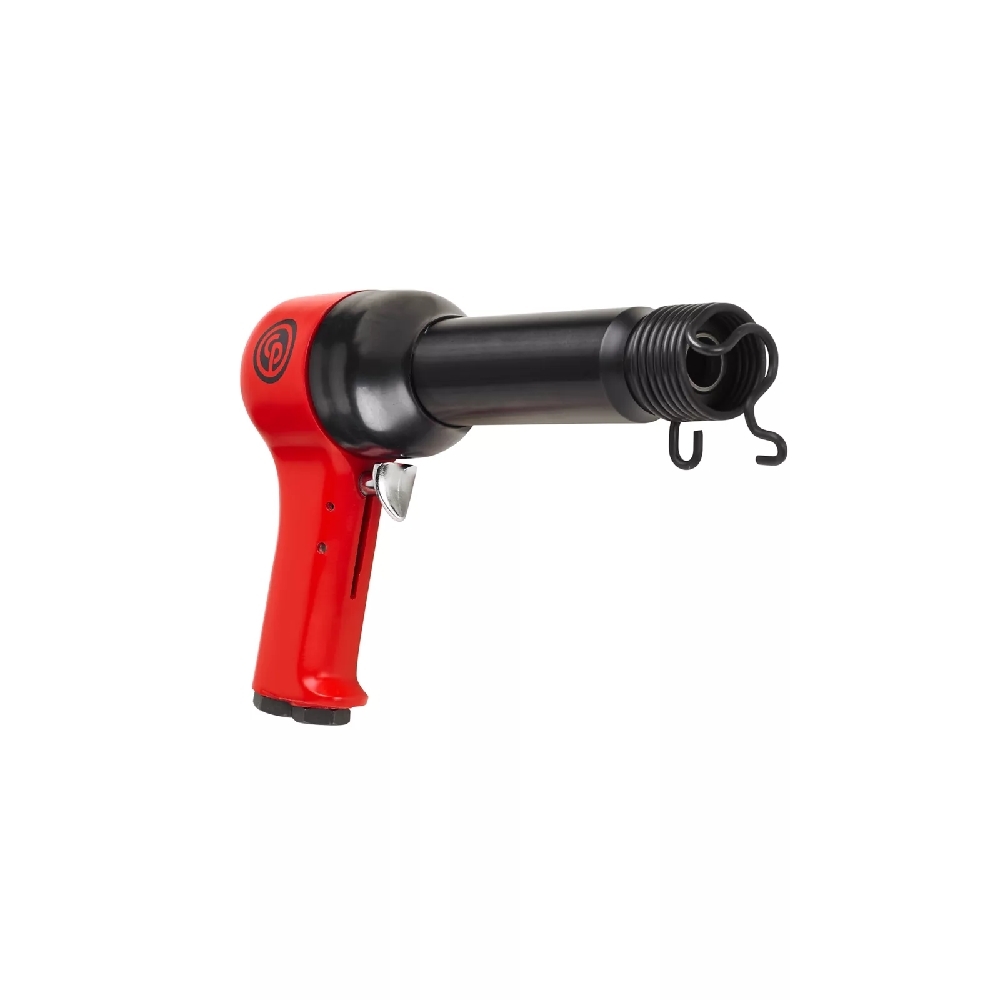

Chicago Pneumatic CP4285 Heavy Duty Riveting Hammer 4.76mm Rivet Size Steel

Features & Benefits:

• Designed for rivets up to 1/4"
• Delivered with chisel retainer included in the box
• To be used with chisel kit 6153609410
• Lightweight and comfortable to hold
• Excellent control with teasing trigger

Specifications:

• Model: CP4285
• Part number: 6151740630
• Air inlet thread size: 1/4 "
• Air inlet thread type: NPT
• Average air consumption: 2.83 l/s / 6 cfm
• Blows per minute: 1600
• Bore: 19 mm / 3/4 "
• Chisel rivet set shank: 12.64 mm / 0.498 "
• Cold rivet capacity (duralmin): 6.35 mm / 1/4 "
• Cold rivet capacity (steel): 4.76 mm / 3/16 "
• European Directives: 2006/42/EC (17/05/2006)
• European Sound standard: EN ISO 15744
• European Standards: EN ISO 11148-4 : 2012
• Height: 160.3 mm / 6.3125 "
• Length: 230 mm / 8.97 "
• Min. hose size: 9.5 mm / 3/8 "
• Net weight: 2.1 kg / 4.63 lb
• Power (Joules): 9.03 joule
• Sound Power: 113 db(A)
• Sound pressure: 102 db(A)
• Sound uncertainty: 3 db(A)
• Stroke: 68 mm / 2.68 "
• Vibration: 24.7 m/s²
• Vibration ISO: EN ISO 28927-10
• Vibration uncertainty (K): 4.5 m/s²
• Width: 63.5 mm / 2 1/2 "
