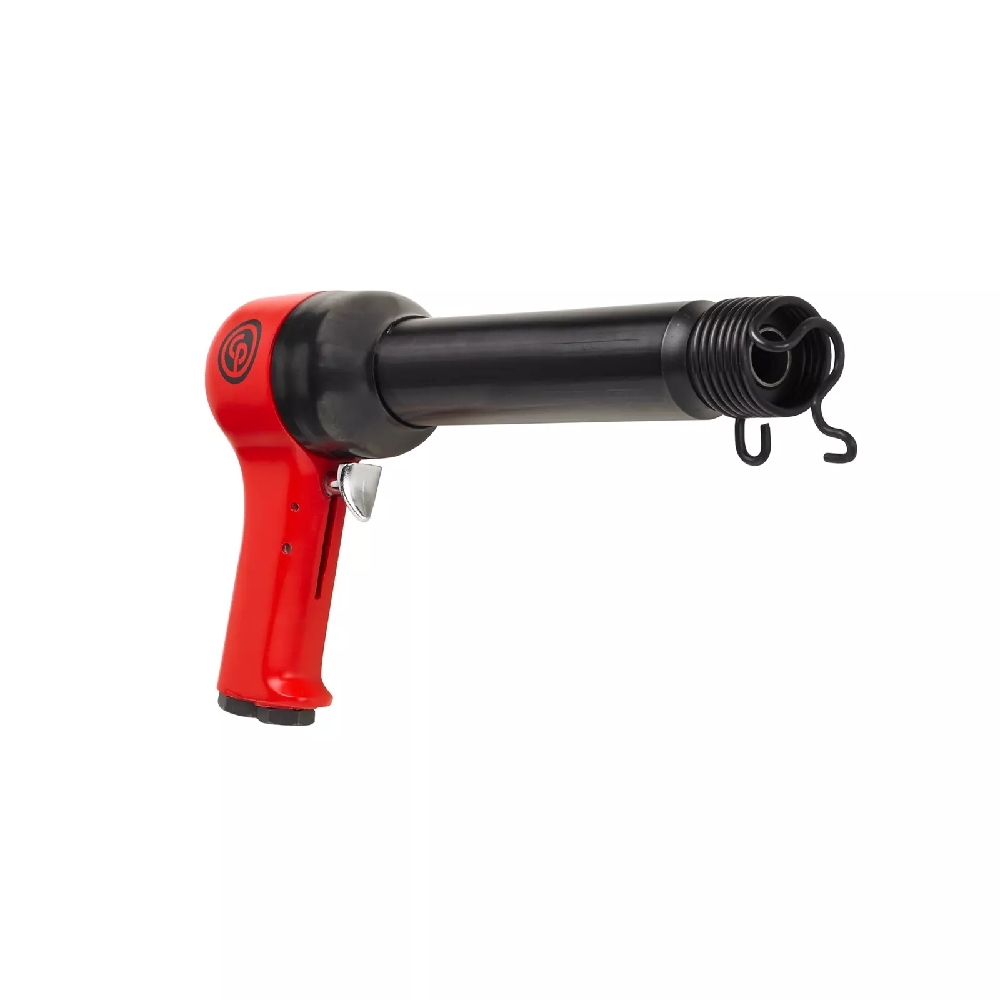

Chicago Pneumatic CP4289 Heavy Duty Riveting Hammer 7.93mm Rivet Size Steel

Features & Benefits:

• Designed for rivets up to 3/8"
• Delivered with chisel retainer included in the box
• To be used with chisel kit 6153609410
• Lightweight and comfortable to hold
• Excellent control with teasing trigger

Specifications:

• Model: CP4289
• Part number: 6151740650
• Air inlet thread size: 1/4 "
• Air inlet thread type: NPT
• Average air consumption: 2.83 l/s / 6 cfm
• Blows per minute: 900
• Bore: 19 mm / 3/4 "
• Chisel rivet set shank: 12.64 mm / 0.498 "
• Cold rivet capacity (duralmin): 9.52 mm / 3/8 "
• Cold rivet capacity (steel): 7.93 mm / 5/16 "
• European Directives: 2006/42/EC (17/05/2006)
• European Sound standard: EN ISO 15744
• European Standards: EN ISO 11148-4 : 2012
• Height: 160.3 mm / 6.3125 "
• Length: 284 mm / 11.07 "
• Min. hose size: 9.5 mm / 3/8 "
• Net weight: 2 1/2 kg / 5.51 lb
• Power (Joules): 19.51 joule
• Sound DBA pressure: 102 db(A)
• Sound Power: 113 db(A)
• Stroke: 132 mm / 5.20 "
• Vibration: 26.7 m/s²
• Vibration ISO: EN ISO 28927-10
• Vibration uncertainty (K): 4.8 m/s²
• Width: 63.5 mm / 2 1/2 "
