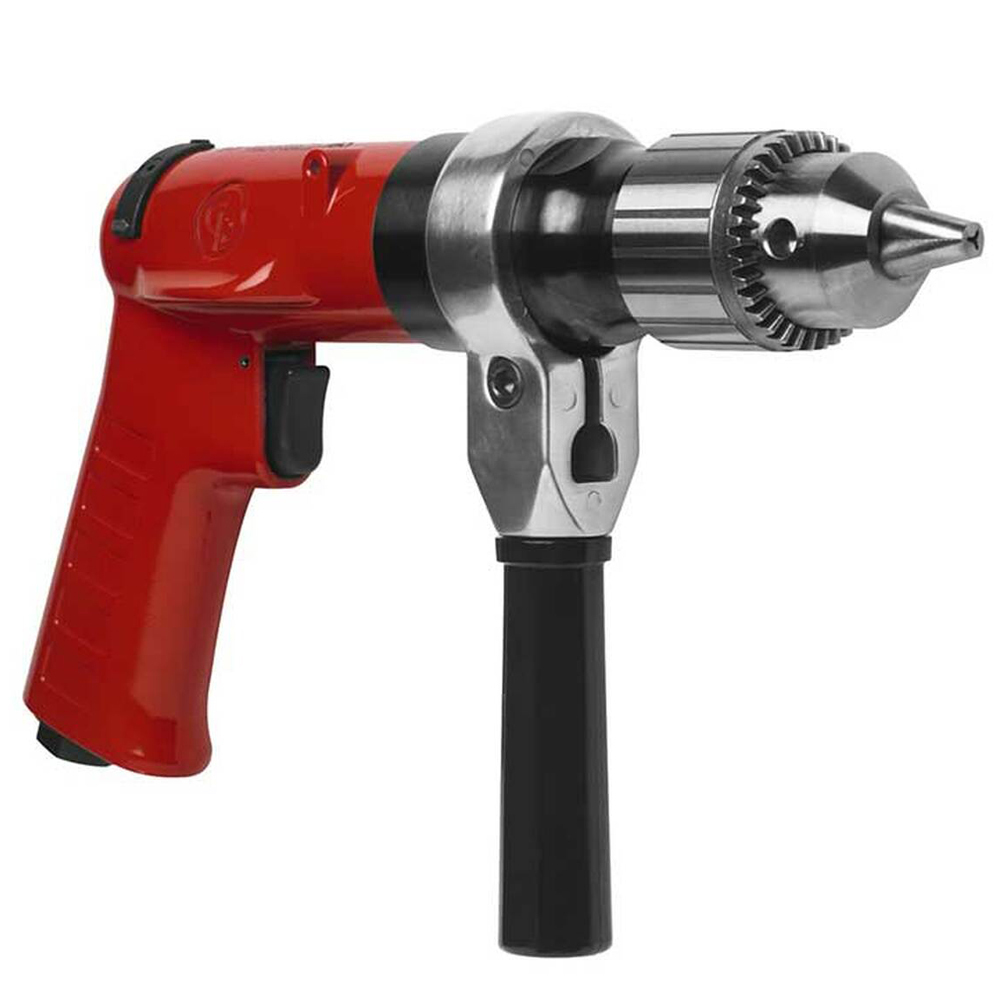

Chicago Pneumatic CP1114R09 1/2" Reversible Heavy Duty Pistol Grip Drill

Perfect for drilling reaming, tapping applications.


Features & Benefits:

  • 1/2" (13 mm) industrial pistol drill with Jacobs industrial keyed chuck
  • Reversible switch
  • Ergonomic & compact bodyLow noise and low vibration
  • Low runout : below 0.15mm
  • Industrial durability
  • Operator comfort thanks to exclusive CP Ergo Wing


Specifications:

  • Model: CP1114R09
  • Part number: 6151580320
  • Actual air consumption: 720 l/mn / 25.5 cfm
  • Air inlet thread size: 1/4 "
  • Chuck capacity: 13 mm / 1/2 "
  • Collet / spindle size: 3/8-24 "
  • Free speed: 900 rpm
  • Free speed air consumption: 15 l/s / 32 cfm
  • Length: 260 mm / 10.2 "
  • Min. hose size: 10 mm / 3/8 "
  • Net weight: 1.8 kg / 4 lb
  • Power: 400 W / 0.54 hp
  • Sound Power: 93 db(A)
  • Sound pressure: 82 db(A)
  • Stall torque: 16.8 Nm / 12.4 ft.lbs
  • Vibration: 3.6 m/s²
  • Vibration ISO: ISO-28927-5
  • Vibration uncertainty (K): 1 1/2 m/s²

(CP1114R09)

Brand Chicago Pneumatic
Shipping Cubic 0.002600000m3
