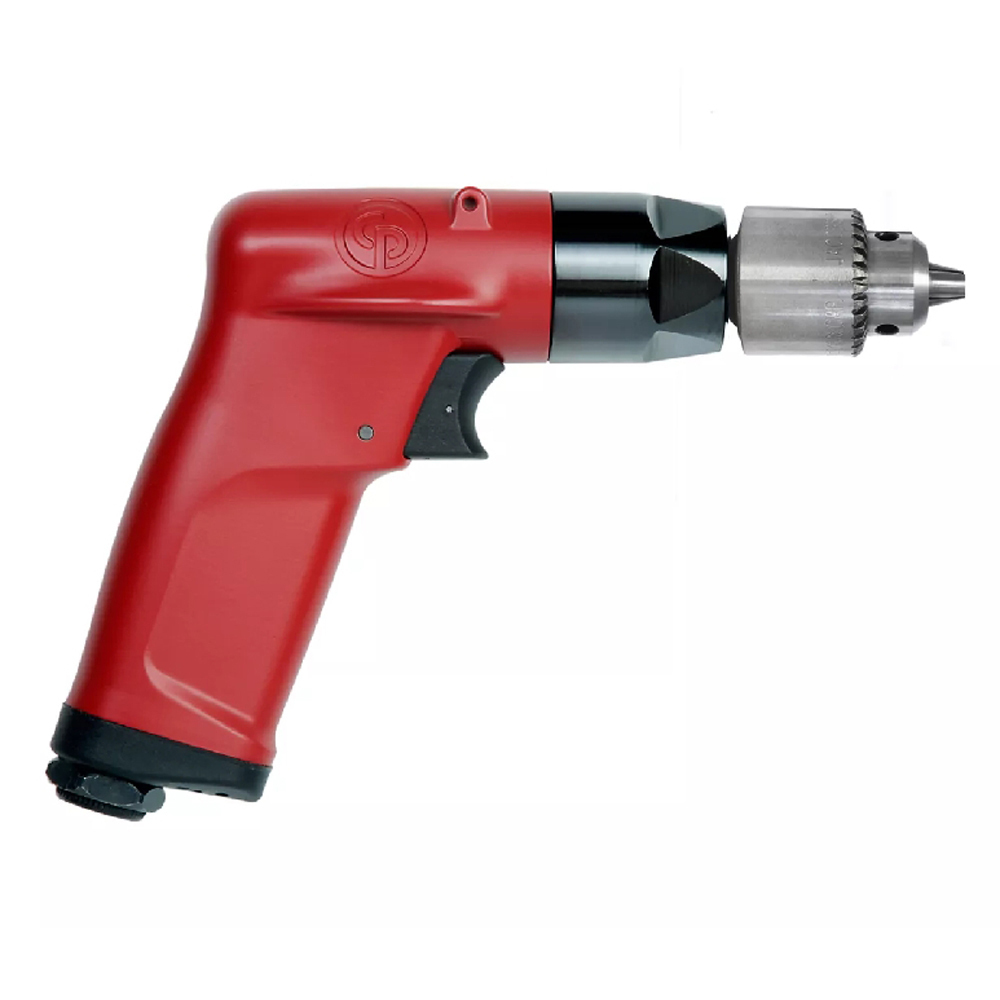

Chicago Pneumatic CP1114R05 1/2" Reversible Heavy Duty Pistol Grip Drill

Perfect for drilling reaming, tapping applications.


Features & Benefits:

  • 1/2" (13 mm) industrial pistol drill with Jacobs industrial keyed chuck
  • Reversible switch
  • Ergonomic & compact body
  • Low noise and low vibration
  • Low runout : below 0.15 mm
  • Industrial durability
  • Operator comfort thanks to exclusive CP Ergo Wing


Specifications:

  • Model: CP1114R05
  • Part Number: 6151580310
  • Actual Air Consumption: 720 l/mn / 25.5 cfm
  • Air Inlet Thread Size: 1/4 "
  • Chuck Capacity: 13 mm / 1/2 "
  • Collet / Spindle Size: 3/8-24 "
  • Free Speed: 500 rpm
  • Free Speed Air Consumption: 15 l/s / 32 cfm
  • Length: 215 mm / 4.46 "
  • Min. Hose Size: 10 mm / 3/8 "
  • Net Weight: 1.3 kg / 2.8 lb
  • Power: 410 W / 1/2 hp
  • Sound Power: 93 db(A)
  • Sound Pressure: 82 db(A)
  • Stall Torque: 25.2 Nm / 18.6 ft.lbs
  • Vibration: 2.6 m/s²
  • Vibration ISO: ISO-28927-5
  • Vibration Uncertainty (K): 1.1 m/s²

(CP1114R05)

Brand Chicago Pneumatic
Shipping Cubic 0.002150000m3
