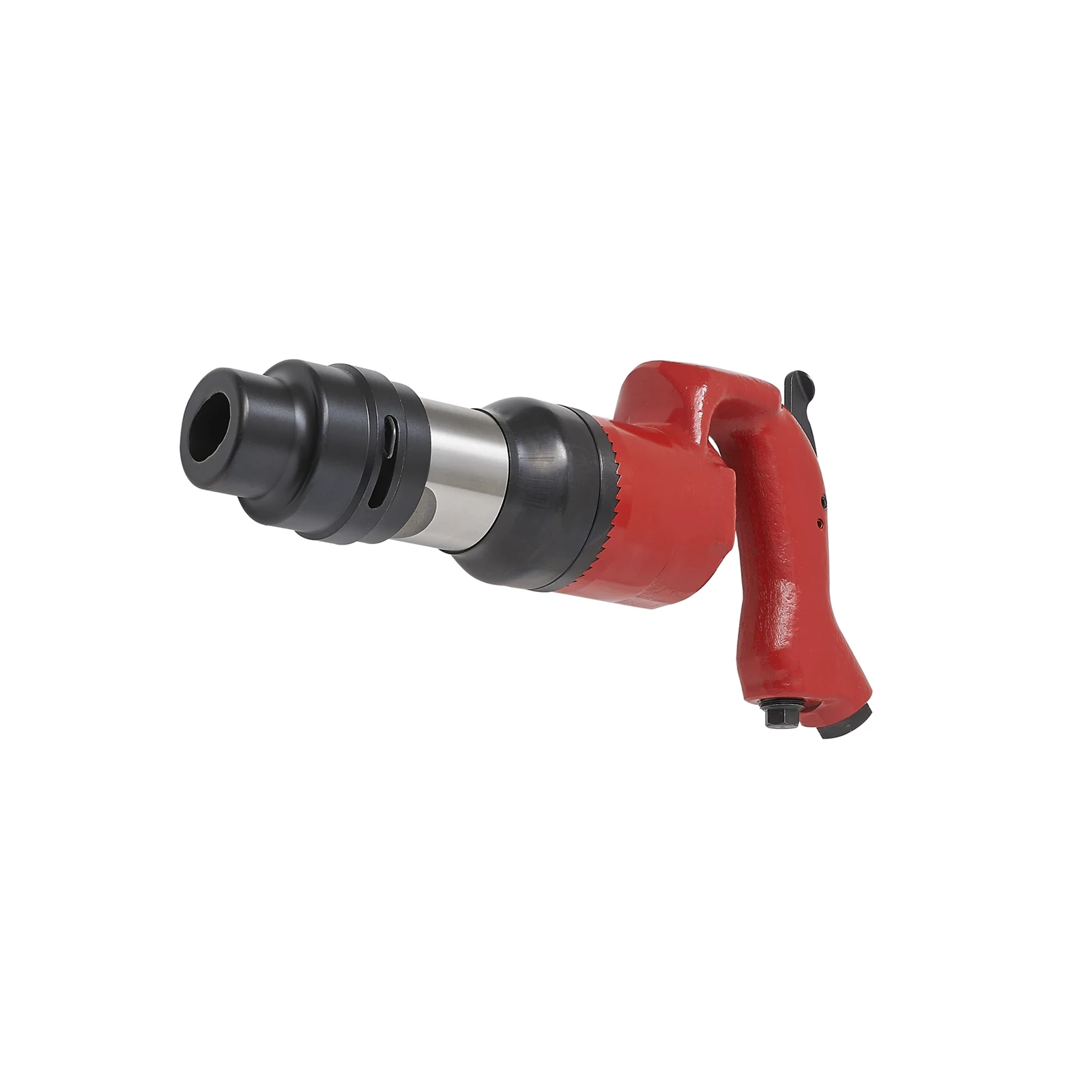

Chicago Pneumatic CP9363-1H Heavy Duty Chipping Hammer 2750 Bpm Hexagonal Shank

Perfect for working in tight areas.


Features:

  • Robust and ergonomic gooseneck grip
  • Orientable steel exhaust deflector
  • Easy chisel replacement system
  • Thick steel safety lever
  • Heat treated durable cylinder
  • Not for CE Markets
  • Durability in demanding applications
  • Secure grip for maximum safety
  • Easy chisel replacement


Specifications:

  • Model: CP9363-1H
  • Part Number: 6151612040
  • Actual Air Consumption: 13.2 l/s / 28 cfm
  • Air Inlet Thread Size: 3/8 "
  • Blows per Minute: 2750
  • Bore: 29 mm / 1 1/8 "
  • Butt Diameter: 14.732 mm / 0.58 "
  • Chisel Rivet Set Shank: 14,2 mm / .580 "
  • Length: 355 mm / 14 "
  • Min. Hose Size: 10 mm / 3/8 "
  • Net Weight: 6,8 kg / 15 lb
  • Shank: Hexagonal
  • Sound DBA Pressure: 102,8 db(A)
  • Sound Power: 113,8 db(A)
  • Stroke: 25 mm / 1 "
  • Vibration: 12,8 m/s²
  • Vibration ISO: ISO-28927-9
  • Vibration Uncertainty (K): 2,8 m/s²

(CP9363-1H)

Brand Chicago Pneumatic
Shipping Cubic 0.003550000m3
