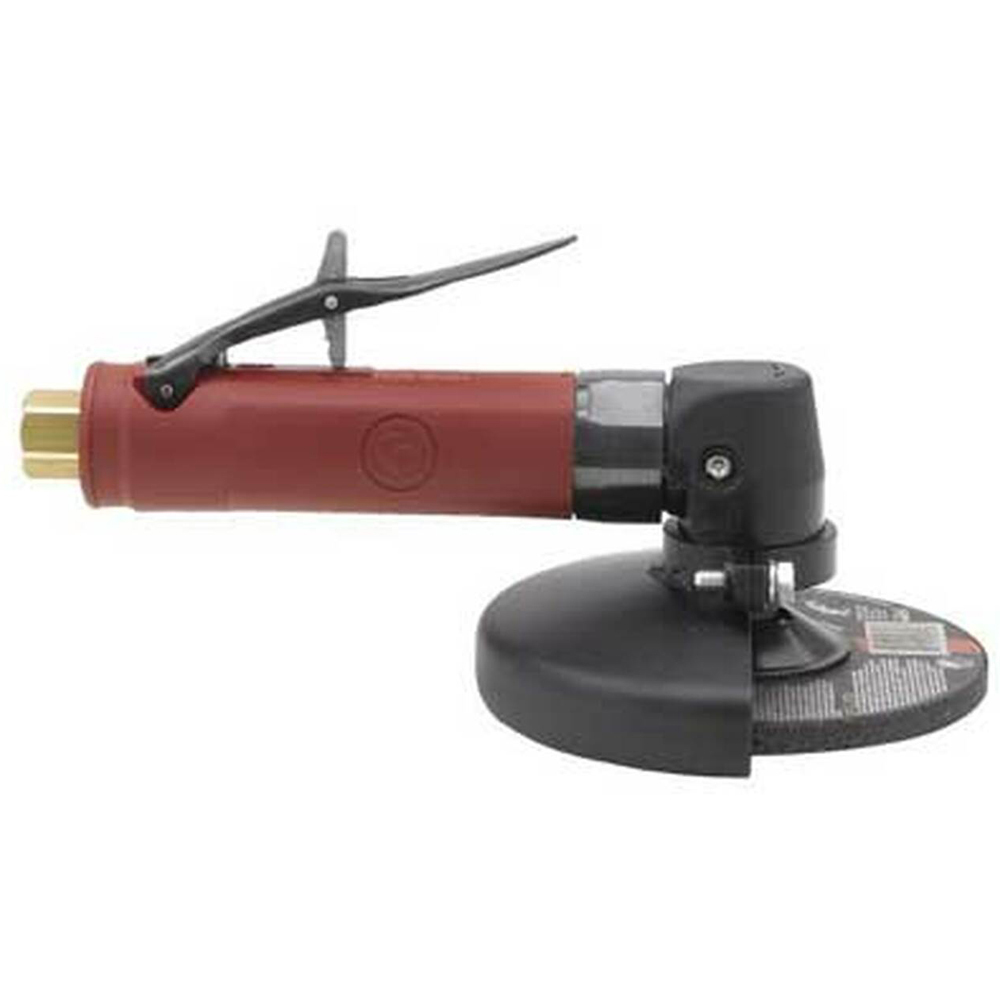

Chicago Pneumatic CP3019-20A3 3" Heavy Duty Angle Grinder 20000 Rpm Rear Exhaust


Features & Benefits:

  • Highly durable bevel gear
  • Compact body
  • Insulating composite over housing
  • Streamlined safety lever
  • Rear exhaust
  • 3" (73mm) wheel capacity
  • 0.5 hp (375 W) governed motor
  • 20,000 rpm free speed
  • Optimal productivity
  • Highest durability in demanding applications up to 2000 hours maintenance intervals


Specifications:

  • Model: CP3019-20A3
  • Part Number: 6151607070
  • Actual Air Consumption: 540 l/mn / 19.08 cfm
  • Air Inlet Thread Size: 1/4"
  • Average Air Consumption: 270 l/mn / 9.54 cfm
  • Box Dimensions: 380x218x96mm
  • Free Speed: 20000 rpm
  • Free Speed Air Consumption: 6 l/s / 12.72 cfm
  • Length: 163mm / 6.4"
  • Min. Hose Size: 8mm / 5/16"
  • Net Weight: 0.3 kg / 0.7 lb
  • Power: 375 W / 1/2 hp
  • Sound Power: 93.6 db(A)
  • Sound Pressure: 82.6 db(A)
  • Spindle Thread: 3/8-24
  • Vibration: 13.3 m/s²
  • Vibration ISO: ISO-28927-1
  • Vibration Uncertainty (K): 3.2 m/s²
  • Wheel Size: 75mm / 3"

(CP3019-20A3)

Brand Chicago Pneumatic
Shipping Cubic 0.001630000m3
