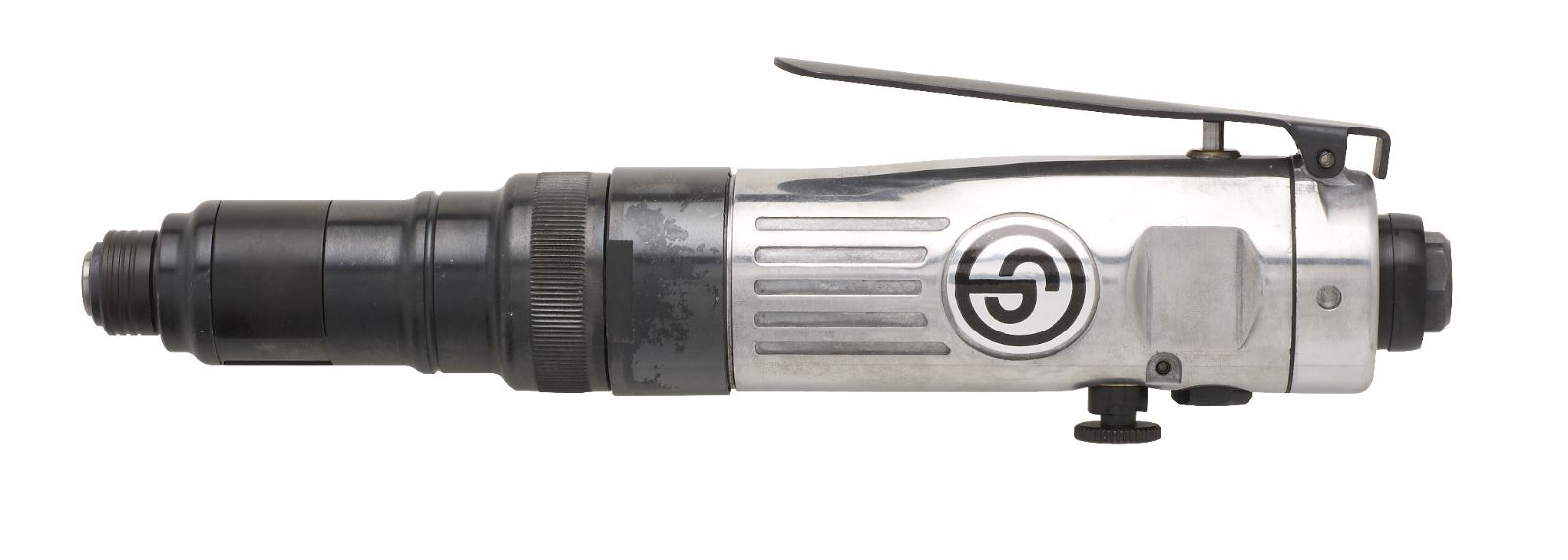

CP782 Screwdriver Straight Case Roller Clutch External Clutch Adjust 1800rpm 5Nm
Model : #CP782
Share This Item:
CP782 Screwdriver Straight Case Roller Clutch External Clutch Adjust 1800rpm 5Nm
Ideal tool for general assembly operations on metal, wood, PVC, or any repair applications. Faster cycle times with 1,800 rpm.
Features:
- Straight Cushion Clutch Screwdriver
- External clutch adjustment
- Built-in 1/4" Female Hexagonal quick-change
- Convenient single handed forward/reverse valve
- High torque: 44 in.lbs (5 Nm)
- Progressive lever start and suspension bail
Specifications:
- Part Number: T025097
- Length: 245 mm / 9.63"
- Net Weight: 1.13 kg / 2.5 lb
- Average Air Consumption: 1.9 l/s / 4 cfm
- Average Air Consumption: 113 l/mn / 4 cfm
- Actual Air Consumption: 7.6 l/s / 16 cfm
- Actual Air Consumption: 453 l/mn / 16 cfm
- Free Speed Air Consumption: 7.6 l/s / 16.1 cfm
- Air Inlet Thread Size: 1/4"
- Min. Hose Size: 10 mm / 3/8"
- Sound Pressure: 93.9 dB(A)
- Sound Power: 104.9 dB(A)
- Vibration ISO: ISO-28927-2
- Vibration: <2.5 m/s²
- Output Drive: 1/4"
- Handle Type: Straight
- Clutch Type: Cushion
- Free Speed: 1800 rpm
- Max Working Torque: 4.97 Nm / 3.7 ft.lbs
- Min Working Torque: 3.5 Nm / 2.58 ft.lbs
- Diameter: 30 mm / 0.76"
- Bit Holder: Quick Change Hexagonal Female
(CP782)
Barcode # | 15451510473 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002450000m3 |
