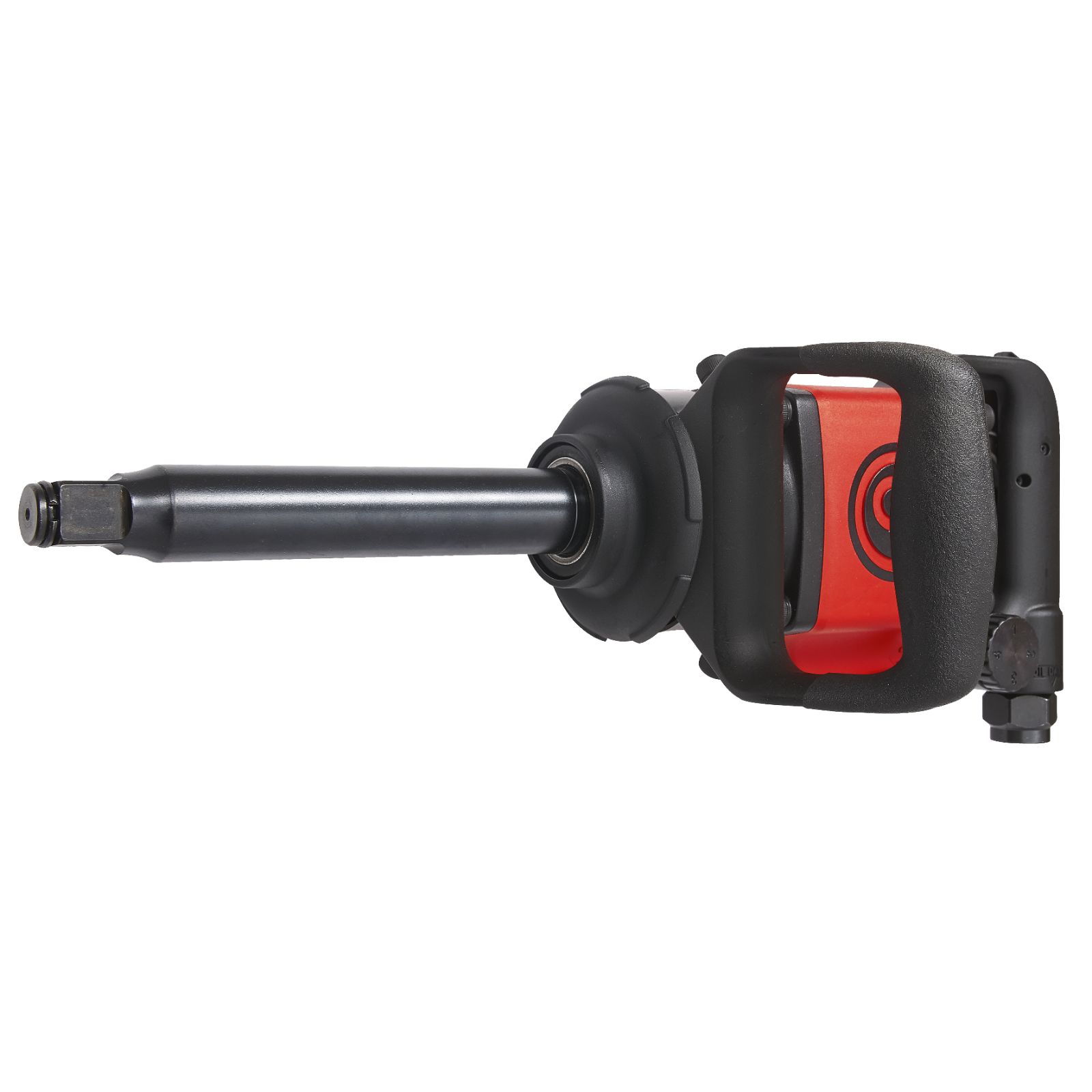

Chicago Pneumatic CP7763D-6 3/4" Impact Wrench Straight Case 1760Nm with 6" Extended Anvil

Features:

• 16.1 lbs. - 7.3 kg
• 1300 ft.lbs. / 1760 Nm in reverse
• Twin hammer mechanism
• Steel motor
• Intuitive Forward / Reverse lever & power regulator on both sides
• 4 position power settings on both sides
• Side handle with soft touch grip
• Down exhaust
• Aluminum housing
• Composite cover on the clutch housing
• Socket retainer ring

Specifications:

• Part number: 8941077637
• Length: 445 mm / 17.5"
• Net weight: 7.3 kg / 16.1 lb
• Side to centre: 45mm / 1.8"
• Actual air consumption: 19.3 l/s / 41 cfm
• Free speed air consumption: 26.6 l/s
• Air inlet thread size: 1/2"
• Min. hose size: 13 mm / 3/8"
• Sound pressure: 98 db(A)
• Sound Power: 109 db(A)
• Vibration ISO: ISO-28927-2
• Vibration: 12 m/s²
• Vibration uncertainty (K): 3.3 m/s²
• Handle type: D-Handle Inside Trigger
• Square drive: 3/4"
• Working Torque Range (fwd): 340 - 1450 Nm / 250 - 1070 ft.lbs
• Maximum Torque (reverse): 1760 Nm / 1300 ft.lbs
• Free speed: 6600 rpm
• Socket retainer: Friction ring
• Clutch type: Twin hammer
