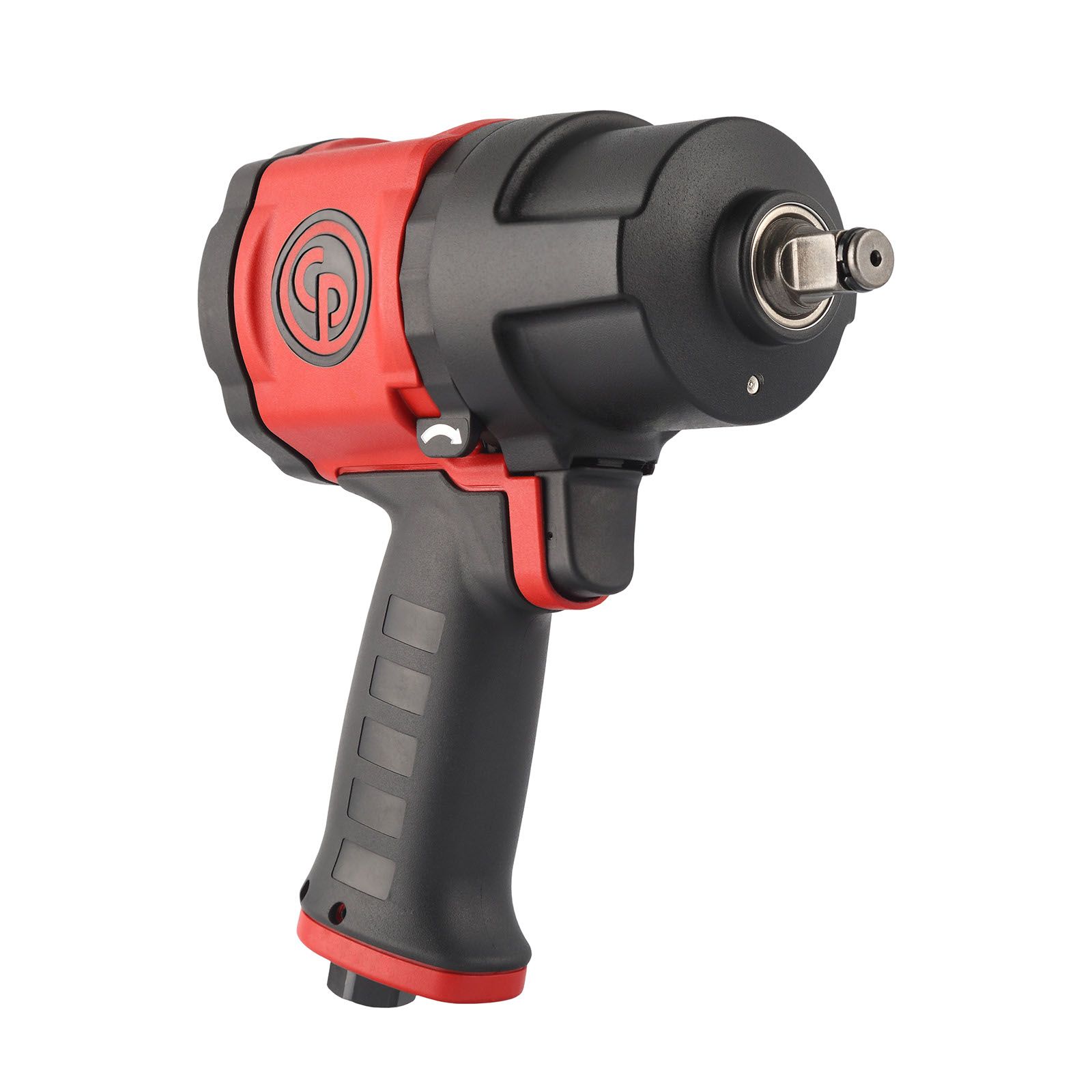

Chicago Pneumatic 1/2" Composite Impact Wrench G-Series Air 1300Nm CP7748

Suited for all maintenance applications: Light vehicle tire changing, General maintenance on vehicles and MRO applications.

Features:

• 1/2" composite impact wrench
• One handed forward/reverse
• Full power in reverse: 960 ft. lb - 1300 Nm maximum real torque in reverse
• Aluminum clutch & back housing
• Friction ring socket retainer
• Full teasing trigger
• Curved to be more ergonomic, Smaller diameter to fit better in hand palm and to be optimum balanced
• Handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip; Resistant to most chemicals used in workshops
• Twin hammer mechanism
• 360° swivel air inlet
• Composite housing

Specifications:

• Part number: 8941077480
• Handle type: Pistol
• Square drive: 1/2"
• Working Torque Range (fwd): 102-786 Nm / 75-580 ft.lbs
• Maximum Torque (reverse): 1300 Nm / 960 ft.lbs
• Free speed: 8200 rpm
• Blows per minute: 1200
• Net weight: 2 kg / 4.6 lb
• Power/weight ratio: 625 Nm/kg / 200.4 ft.lb/lb
• Length: 200 mm / 7.8"
• Side to center: 38 mm / 1 1/2"
• Average air consumption: 3 l/s / 6.2 cfm
• Actual air consumption: 12 l/s / 25 cfm
• Air inlet thread size: 0.25 "
• Min. hose size: 10 mm / 3/8"
• Noise level: 93 db(A)
• Sound Power: 104 db(A)
• Vibration α (ISO-28927-2): 10.1 m/s²
• Vibration K (ISO-28927-2): 2.34 m/s²
• Socket retainer: Friction ring
• Clutch type: Twin Hammer
• Box dimensions: 215*210*77 / 8,5*8,25*3,03
• Over carton: 455*420*240 / 17,9*16,5*9,45
