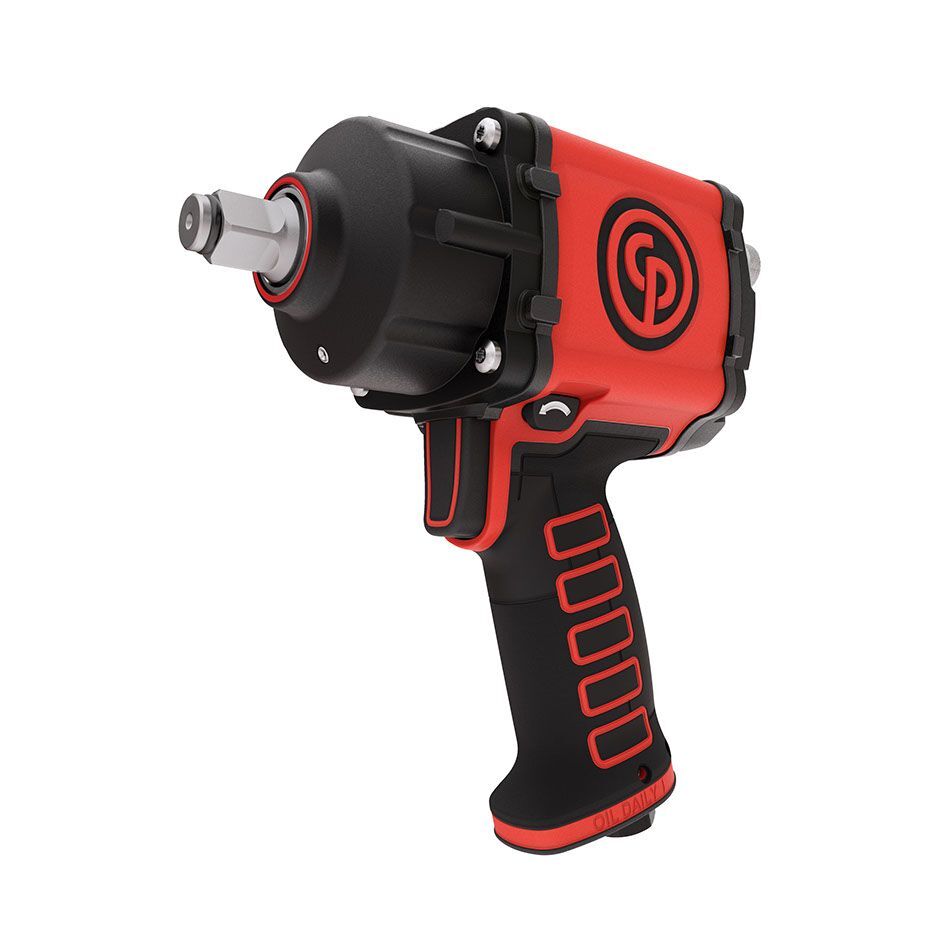

Chicago Pneumatic CP7752 Air Flex Mini 1/2" Impact Wrench Pistol Grip

The best and the most adjustable power control for pneumatic tools.

Features:

• 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 and 100% of maximum torque
• Composite motor housing (4 lbs / 1.85 kg)
• Twin hammer mechanism
• Bumpers all over the tool
• Bi-material and bi-color handle and trigger
• Friction ring socket retainer*
• Final torque must be applied manually using a calibrated torque wrench (please refer to the operator’s manual)

Benefits:

• Complete power control
• High accessibility / maneuvrability
• Ergonomic
• Lightweight
• High durability
• High comfort
• Improved safety

Specifications:

• Model: CP7755
• Part number: 8941077550
• Actual air consumption: 108 l/mn / 3.9 cfm
• Air inlet thread size: 1/4 "
• Blows per minute: 1200
• Box dimensions: 272x209x95 mm / 10.7x8.2x3.7 "
• Clutch type: Twin hammer
• Dimension A: 63.5 mm / 2 1/2 "
• Dimension B: 55.4 mm / 2.18 "
• European Directives: 2006/42/EC (17/05/2006)
• European Sound standard: EN ISO 15744
• European Standards: EN ISO 11148-6:2012
• Free speed: 7700 rpm
• Free speed air consumption: 156 l/mn / 5.6 cfm
• Handle type: Pistol
• Height: 199 mm / 7.83 "
• Length: 169 mm / 6.65 "
• Maximum Torque (fwd): 1080 Nm / 796 ft.lbs
• Maximum Torque (reverse): 1300 Nm / 960 ft.lbs
• Min. hose size: 10 mm / 3/8 "
• Net weight: 1.85 kg / 4.0 lb
• Power/weight ratio: 702 Nm/kg / 234 ft.lb/lb
• Side to center: 38 mm / 1 1/2 "
• Socket retainer: Friction ring
• Sound Power: 105 db(A)
• Sound pressure: 94 db(A)
• Sound uncertainty: 3 db(A)
• Square drive: 12.7 mm
• Vibration: 8.5 m/s²
• Vibration ISO: ISO-28927-2
• Vibration uncertainty (K): 3.4 m/s²
• Width: 76 mm / 3 "
• Working Torque Range (fwd): 80 - 575 Nm / 59 - 425 ft.lbs
