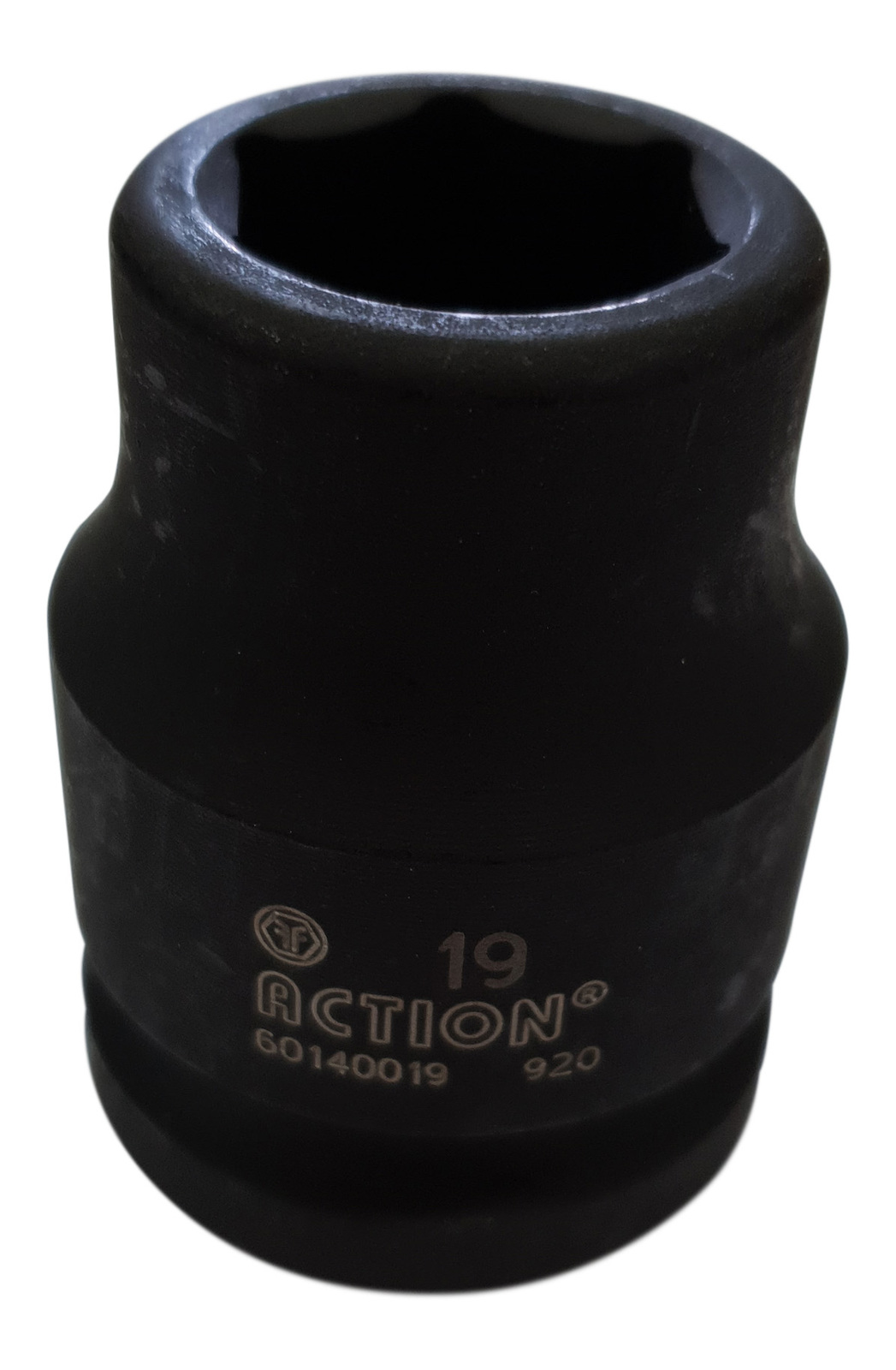

Action Sockets 6-Point 19mm - 50mm 3/4" Drive Standard Length Impact Socket

The sockets are drop forged from Chrome-Molybdenum Alloy Steel, heat treated and surface hardened for maximum durability, and carry a lifetime warranty against defects in material and workmanship.


Specifications

The complete listing of available sockets are in the following table, and dimensions can be referenced to the diagram:

Part Number Size D2 D1 L2 L
6014001 13 38 22 9 50
60140014 14 44 25 13 50
60140015 15 38 26 11 50
60140016 16 38 27.5 11 50
60140017 17 38 28.5 12 50
60140018 18 38 29.5 13 50
60140019 19 38 30 13 50
60140020 20 38 31 14 52
60140021 21 38 32 15 52
60140022 22 38 34 15 52
60140023 23 38 35 16 52
60140024 24 38 36 16 52
60140025 25 38 38 16 52
60140026 26 38 40 16 52
60140027 27 38 40 19 52
60140028 28 44 40 19 52
60140029 29 44 42 21 52
60540030 30 44 47 21 54
60540031 31 44 48 21 56
60540032 32 44 49 22 56
60540033 33 44 51 22 56
60540034 34 44 52 22 56
60540035 35 44 53 22 56
60540036 36 44 54 25 56
60540037 37 44 56 25 58
60540038 38 44 57 25 58
60540039 39 44 58 25 58
60540040 40 44 58 25 58
60540041 41 44 60 27 58
60540042 42 44 62 27 58
60540043 43 44 63 27 63
60540044 44 44 65 27 63
60540045 45 44 66 27 63
60540046 46 44 67 30 63
60540047 47 44 68 30 68
60540048 48 44 69 30 68
60540049 49 44 70 30 70
60540050 50 54 71 32 72
60540051 51 54 72 32 72
60540052 52 54 74 32 72
60540053 53 54 75 32 72
60540054 54 54 77 32 72
60540055 55 54 77 35 74
60540056 56 54 80 35 74
60540057 57 54 80 35 74
60540058 58 54 81 37 75
60540060 60 54 84 37 75
60540062 62 54 86 37 75
60540063 63 54 86 37 75
60540065 65 54 88 40 78
60540067 67 54 90 40 80
60540068 68 54 94 40 80
60540070 70 54 96 40 80
60500073 73 54 100 42 83
60540075 75 54 102 42 83
60540076 76 54 104 45 85



(ITIM600M-V)

Brand Action Sockets
Shipping Cubic 0.001000000m3
