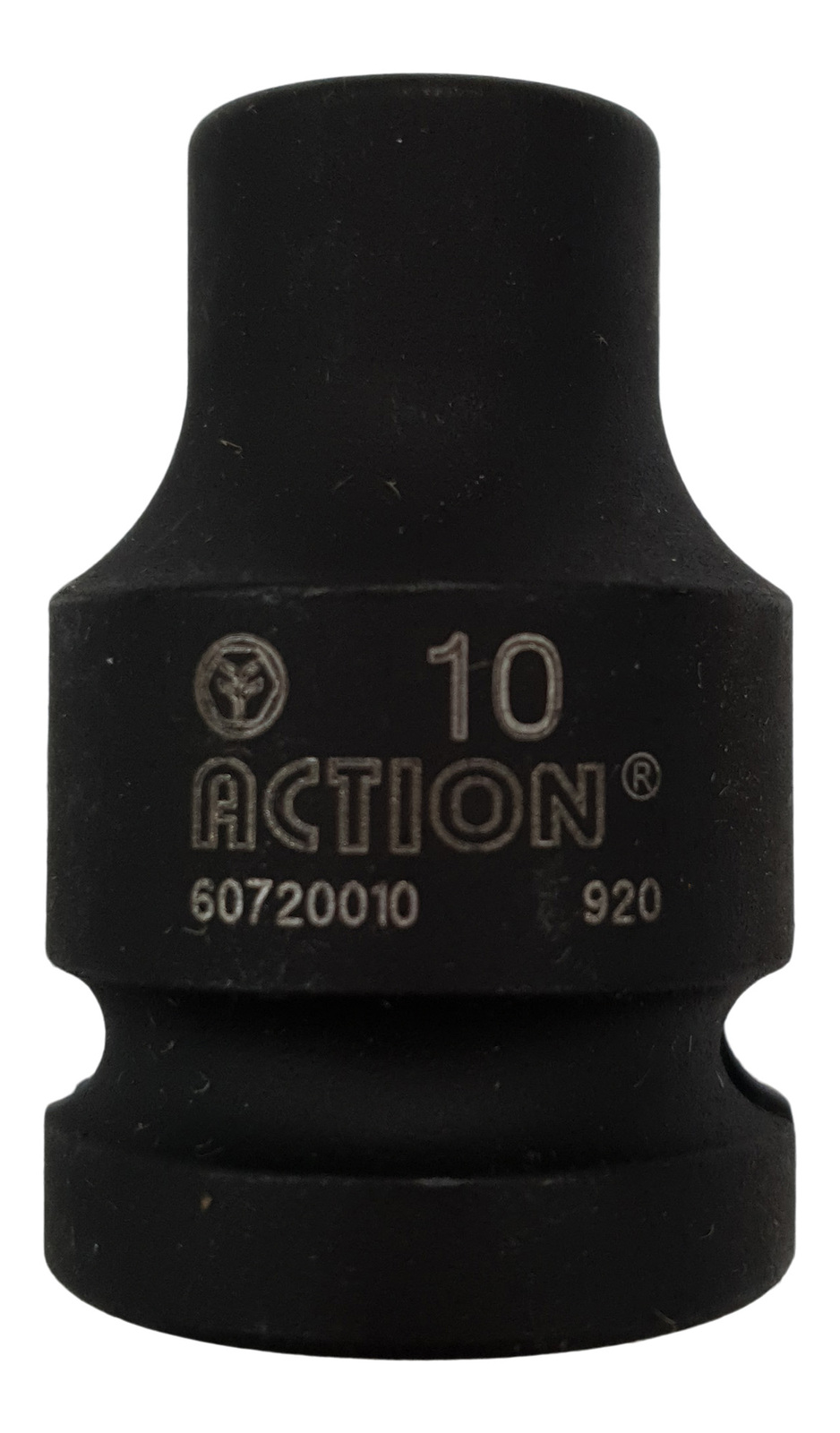

Action Sockets 6-Point 10mm - 36mm 1/2" Drive Standard Length Impact Socket

The sockets are drop forged from Chrome-Molybdenum Alloy Steel, heat treated and surface hardened for maximum durability, and carry a lifetime warranty against defects in material and workmanship.


Specifications

The complete listing of available sockets are in the following table, and dimensions can be referenced to the diagram in the images.

Part Number Size D2 D1 L2 L
60720006 6 25 13 5 38
60720007 7 25 14 5 38
60720008 8 25 14 9 38
60720009 9 25 15 12 38
60720010 10 25 16 12 38
60720011 11 25 17.5 12 38
60720012 12 25 19 12 38
60720013 13 25 20 12 38
60720014 14 25 22 12 38
60720015 15 25 23 12 38
60720016 16 25 25 12 38
60720017 17 26 26 13 38
60720018 18 28 28 13 38
60720019 19 28 28 13 38
60520020 20 30 30 13 38
60520021 21 30 30 13 38
60520022 22 30 32 13 38
60520023 23 30 32 13 38
60520024 24 30 35 20 45
60520025 25 30 36 20 45
60520026 26 30 38 22 50
60520027 27 30 38.7 22 50
60520028 28 30 40 22 50
60520029 29 30 40 22 50
60520030 30 30 42 22 50
60520031 31 30 43 28 50
60520032 32 30 44 28 50
60520033 33 30 45 28 50
60520034 34 30 48 22 50
60520035 35 30 47 28 50
60520036 36 30 49 28 50
60520038 38 38 53 24 50
60520039 39 44 54.5 24 60
60520040 40 44 56 24 60
60520041 41 44 58 27 60
60520042 42 44 60 27 60
60520043 43 44 61 27 60
60520044 44 44 63 27 60
60520045 45 44 64 27 60
60520046 46 44 65 30 70
60520047 47 44 66.5 30 70
60520048 48 44 68 30 70
60520049 49 44 69 30 70
60520050 50 52 70 32 70
60520051 51 52 71 32 70
60520052 52 52 72.5 32 70
60520053 53 52 74 32 70
60520054 54 52 75 32 70
60520055 55 52 76 35 70
60520056 56 52 77 35 70
60520057 57 52 78 35 70
60520058 58 52 79 37 70

(ITIM400M-V)

Brand Action Sockets
Shipping Cubic 0.001000000m3
