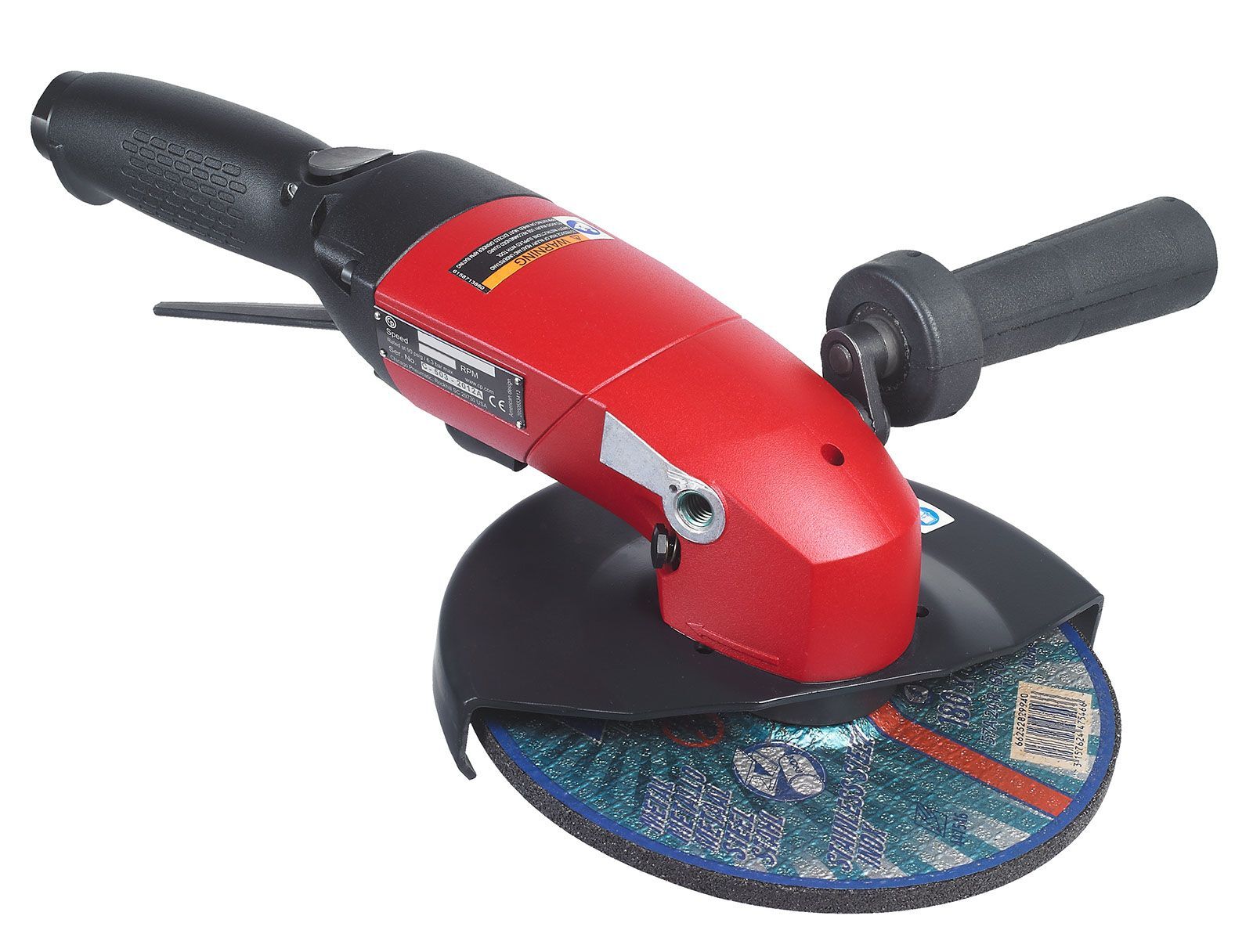

CP3850-85ABVE 7" Industrial Angle Wheel Grinder 2.1kW 8500rpm Integrated Silencer
Model : #CP3850-85ABVE
Share This Item:
CP3850-85ABVE 7" Industrial Angle Wheel Grinder 2.1kW 8500rpm Integrated Silencer
Features:
- Low profile angle head
- Superior durability bevel gearing
- Double action safety lever
- Curved handle housing
- 7" (180 mm) wheel capacity
- 2.8 hp (2,100 W) high performance governed motor
- 8,500 rpm free speed
- Integrated silencer
- Orientable exhaust
- Spindle lock button
- Auto balancer
- Vibration damping multi-position side handle
- CE certification / not for North American Market
Benefits:
- Industrial angle wheel grinder
- Highest durability in demanding applications with up to 2,000 hours maintenance intervals
- Superior torque for maximum productivity
- Superior ergonomics
Specifications:
- Part Number: 6151704920
- Actual Air Consumption: 36 l/s / 77 cfm
- Air Inlet Thread Size: 1/2 "
- Average Air Consumption: 0 l/s
- Box Dimensions: 390X295X135 mm
- European Directives: 2006/42/EC (17/05/2006)
- European Standards: EN 11148-7:2012
- Free Speed: 8500 rpm
- Free Speed Air Consumption: 17 l/s / 36 cfm
- Height Over Spindle: 107 mm / 4.21 "
- Length: 340 mm / 13.4 "
- Min. Hose Size: 5/8 "
- Net Weight: 2.9 kg / 6.4 lb
- Power: 2100 W / 2.8 hp
- Side to Center: 29 mm / 1.14 "
- Sound Power: 98 dB(A)
- Sound Pressure: 87 dB(A)
- Spindle Thread: 5/8-11
- Vibration: 5.7 m/s²
- Vibration ISO: ISO-28927-1
- Vibration Uncertainty (K): 1.1 m/s²
- Wheel Size: 180 mm / 7 "
(CP3850-85ABVE)
Barcode # | 15451699826 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.003400000m3 |
