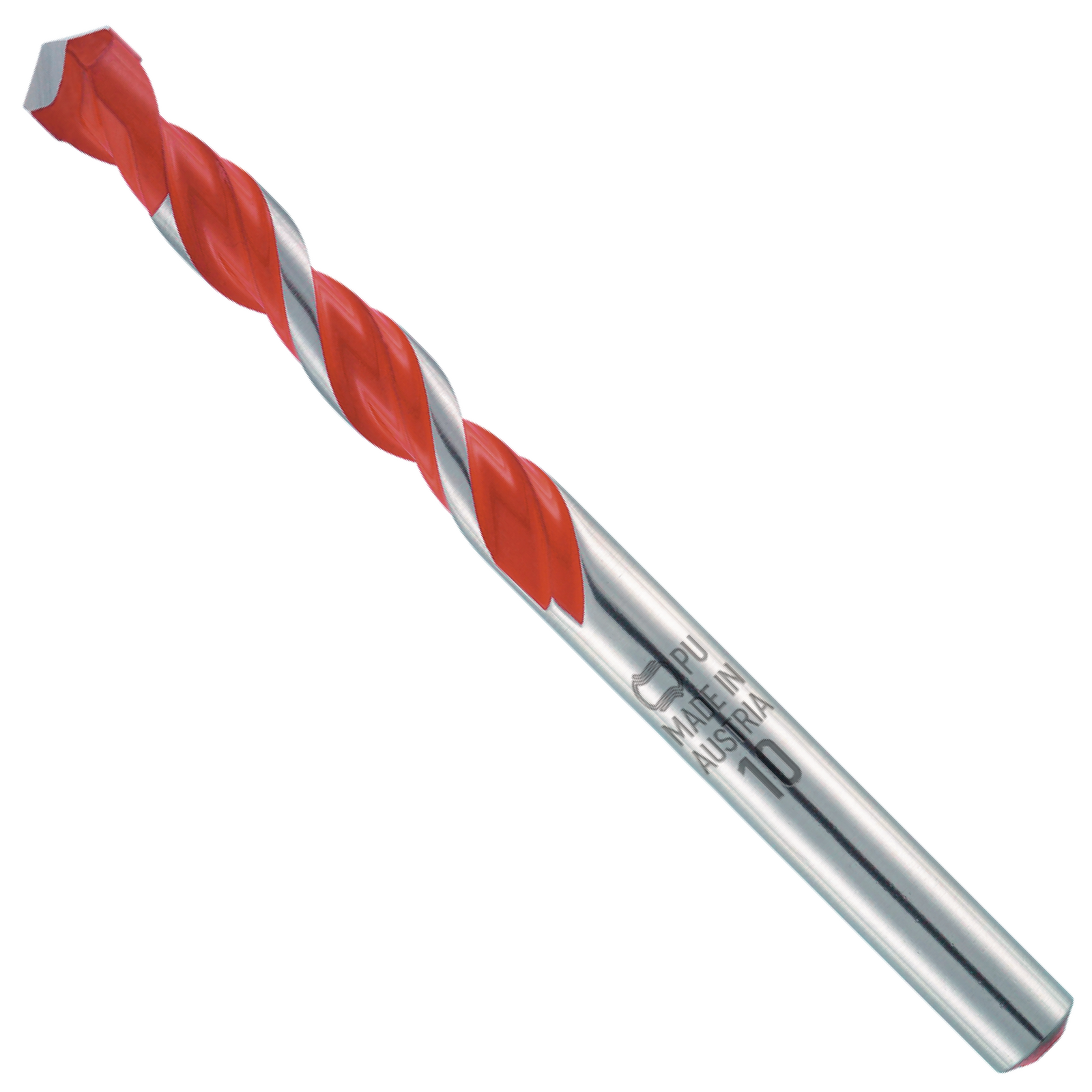

3pc of 3.0 x 200mm Alpen Multicut Drill Bit Straight Shank

Manufactured by Alpen in Austria. The innovative Multicut drill is the perfect tool for drilling through multiple materials.
Its ability to drill through Tiles, Masonry, Concrete, Steel, Plastic and Wood with the one bit in one operation reduces time,
increases accuracy and reduces tooling requirements.

Diamond ground cutting surfaces and the special edge geometry of the Tungsten Carbide Tip enable the Multicut to achieve
these results in rotary only drilling mode - no need for hammer.

This listing contains:

  • 3 x Alpen Multicut Drill Bits
  • Straight Shank
  • 3.0 x 200mm



Complete Specifications of The Entire Range of Alpen Multicut Drill Bits:

Available with Straight Shank or SDS Plus. With PGM Sichersafe approval, these top quality Austrian made drill bits are ideal
for the professional.


Specifications

Entire range is an illustration of the sizes available - Listing is for an INDIVIDUAL Drill Bit

SDS+ Range

Ø mm Ø inch Overall Length (mm) Working Length (mm) Part Number
5 3/16 110 50 00509005001
6 15/64 110 50 00509006001
6 15/64 160 100 00519006001
6 15/64 210 150 00529006001
6.5 5/16 260 200 00539006501
8 5/16 110 50 05509008001
8 5/16 160 100 00519008001
8 5/16 210 150 00529008001
8 5/16 260 200 00539008001
10 3/8 160 100 00519010001
10 3/8 210 150 00529010001
10 3/8 260 200 00539010001
12 15/32 160 100 00519012001
12 15/32 210 150 00529012001
12 15/32 260 200 00539012001
14 9/16 160 100 00519014001
14 9/16 210 150 00529014001
14 9/16 260 200 00539014001
16 5/8 260 200 00539016001



Straight Shank

Ø mm Ø inch Overall Length (mm) Working Length (mm) Part Number
3 1/8 60 30 00172003001
4 5/32 75 39 00172004001
5 3/16 85 39 00172005001
5.5 - 85 39 00729005001
5.5 - 150 85 00729005501
5.5 - 400 300 00730005501
6 15/64 100 54 00172006001
6 15/64 200 135 00729006001
6 15/64 400 300 00730006001
6.5 1/4 100 54 00172006501
6.5 1/4 200 135 00729006501
6.5 1/4 400 300 00730006501
7 9/32 100 54 00172007001
7 9/32 200 135 00729007001
8 5/16 120 80 00172008001
8 5/16 200 135 00729008001
8 5/16 400 300 00730008001
10 3/8 120 80 00172010001
10 3/8 200 135 00729010001
10 3/8 400 300 00730010001
12 15/32 150 90 00172012001
12 15/32 220 150 00729012001
12 15/32 400 300 00730012001
14 9/16 220 150 00729014001
14 9/16 400 300 00730014001
16 5/8 400 300 00730016001







(ITAL00729006001X3)

Brand Alpen
