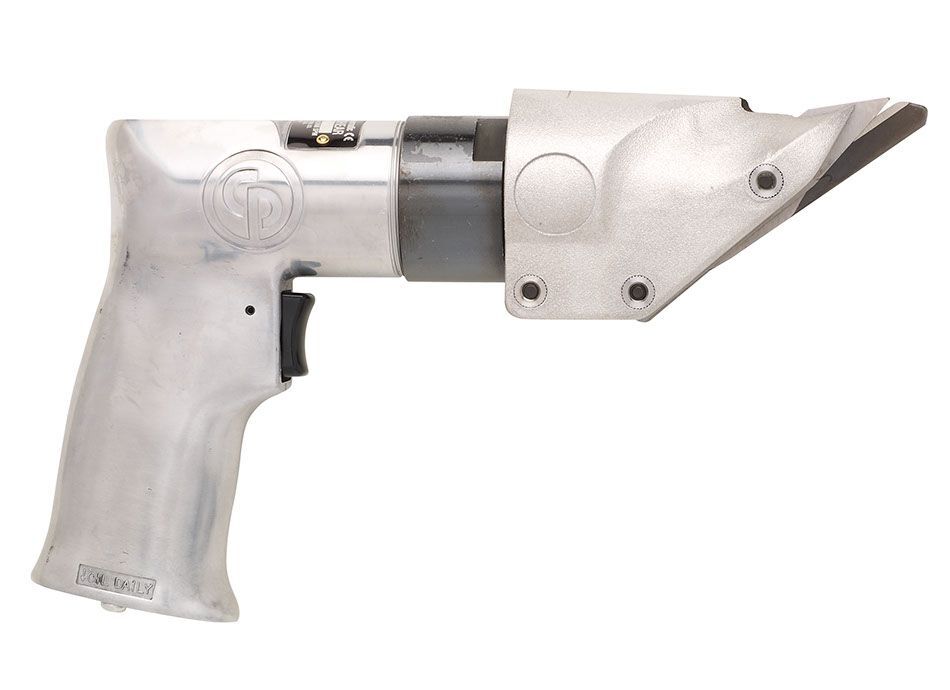

Chicago Pneumatic CP785S 2400SPM Heavy Duty Air Pistol Shear
Model : #CP785S
Share This Item:
Chicago Pneumatic CP785S 2400SPM Heavy Duty Air Pistol Shear
Features:
- Heavy-duty pistol shear
- Powerful efficient 0.5 hp (370 W) motor to cut up to 18-gauge steel (1.1 mm - 0.04'')
- Triple idler planetary gearing
- Ergonomic handle design
Benefits:
- Smooth operation and extended life
- Operator comfort
- Reliable cutting performance
- Excellent tool for cutting square and angles in all types of aluminum, tin and steel
Specifications:
- Model: CP785S
- Part Number: T023200
- Actual Air Consumption: 438.769230769231 l/mn / 15.5 cfm
- Air Inlet Thread Size: 1/4"
- Average Air Consumption: 1.8 l/s / 3.7 cfm
- Length: 229 mm / 8.25 "
- Min. Hose Size: 10 mm / 3/8 "
- Net Weight: 0.86 kg / 2 1/2 lb
- Sound DBA Pressure: 95 dB(A)
- Sound Pressure: 84 dB(A)
- Strokes per Minute: 2400
- Vibration: 3.2 m/s²
- Vibration ISO: ISO-28927-8
- Vibration Uncertainty (K): 3 m/s²
(CP785S)
Brand | Chicago Pneumatic |
